Xhorse VVDI PROG TooL Key ProgrammerAdd you Tags
Details:
Top Reasons to Get VVDI Prog:
1. Support R&W lots of chips, include MC9S08 series, MC68HC(9)12 series,MC9S12 series, V850 series, H8X series, R8C series, PCF79XX series and most eeprom chips
2. Support chip data verify, check blank function
3. Support data file compare function
4. Support R&W BMW N20, N55 ECU (show ISN directly)
5. Stable R&W MC9S12XE series chips (5M48H/1N35H/2M53J/3M25J etc.)
6. Support renew PCF79XX remote, currently support BMW E/F series
7. Lots of connection diagram
8. Support Multi-language now: English, Arabic, Czech, French, Italian, Polish, Portuguese, Russian, Spanish, Turkish & Chinese Simplified
 How To Update VVDI Prog Programmer Online?
This function require internet support
Click the "Upgrade" button enter the upgrade interface, show as following picture
 Enter update interface, if software show ”communication with server failed”,please close your Anti-virus and computer firewall and retry. If software show “unable to find equipment”, please reconnect device
Tip information show the latest software version and upgrade information
Device information show the device SN, device firmware version and the latest firmware version
Firmware upgrade steps:
1. Select the firmware version
2. Click“Start Firmware Upgrade” button
3. Don't close or pull out USB cable before upgrade finished
Software upgrade steps:
1. Click“Software Link 1" or "Software Link 2" button, download software from the web
2. Extract the file
VVDI Prog Programmer Supported Type List:
Memory:
ATMEL,CATALYST,EXEL,FAIRCHILD,INTEL,MICROCHIP,MITSUBISHI,ST,TOSHIBA,XICOR
MCU:
RENESAS V850,RENESAS H8X,RENESAS R8C,MOTOROLA MC68HC(9)08,MOTOROLA MC68HC(9)12
MOTOROLA MC9S08,MOTOROLA MC9S12,NXP PCF79XX,ST ST10F,INFINEON XC2XXX,ATMEL,ATMEGA XXXX,
INFINEON XC164CS,MICROCHIP PIC18F
VVDI Prog Programmer Support Model List:
ECU List:
BMW E Series,BMW F Series,BOMBARDIER,CHANGAN,DELPHI,MAGNETI,MARELLI,RENAULT,OTHER
IMMOBILIZER List:
AUDI,BENZ,BMW,BUCIK,CHEVROLET,STEC,CHRYSLER,FIAT,FORD,GREATWALL,INFINITI,LANDROVER,
JAGUAR,NISSAN,OPEL,PORSCHE,RENAULT,SAICMOTOR,VOLKSWAGEN,ZHONGHUA.
DASHBOARD List:
BUICK,CHANGAN,CHERY,CHEVROLET,DONGFENG,FAW,FORD,GEELY,GREATWALL,HAFEI,TOYOTA,
HANTENG,HAIMA,HONDA,JAC,JAGUAR,JINBEI,JMC,LUXGEN,NISSAN,SGMW,VOLOVO,ZHONGHUA,ZOTYE
REMOTE List:
BMW E Series,BMW F Series
VVDI PROG Connection for Maybach:
 VVDI Prog Connection for Sprinter:

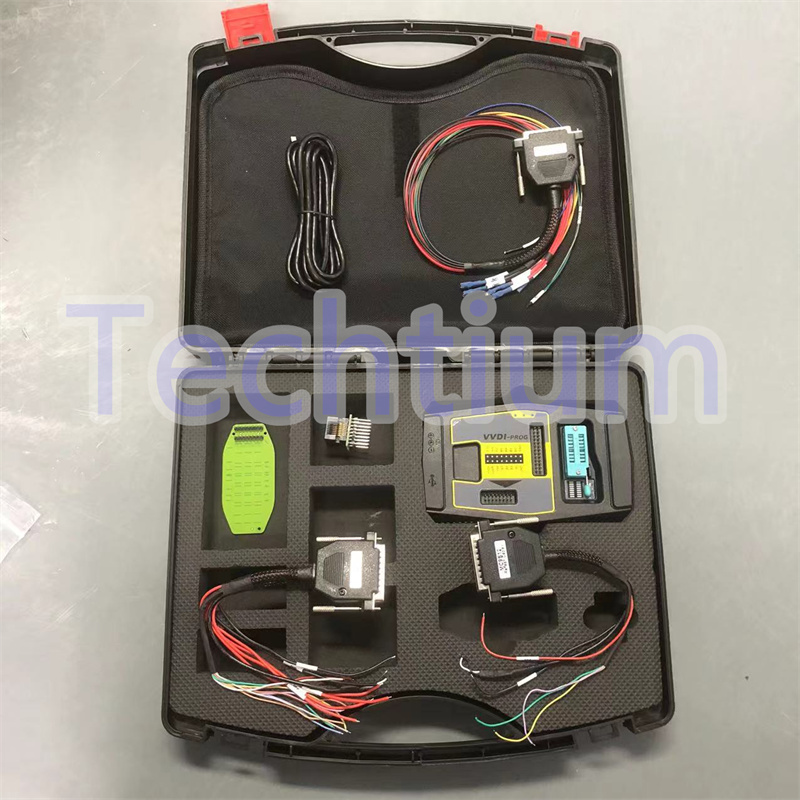

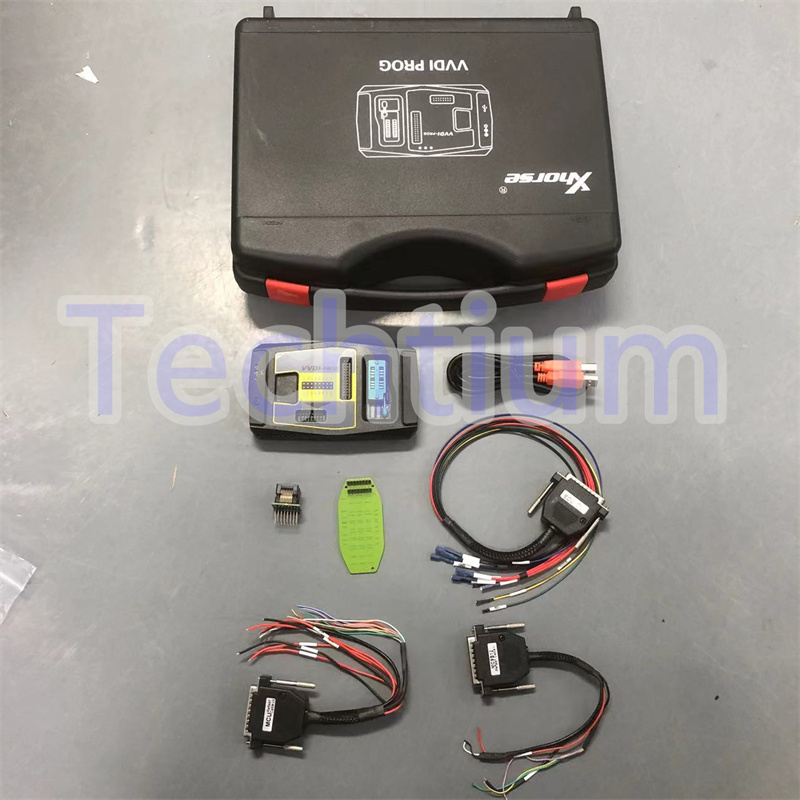

  VVDI Prog Programmer Unit Description:
1.16 Pin DIP socket Function:
Read EEPROM chips Use method: Follow the image direction when insert the DIP chip (PIN1 as yellow point show as the picture);
SOP chip need soldering on 16Pin adaptor first, then insert the chip follow the image direction
 2. MCU Reflash Cable
Function: Read & Write MC68HC(9)12, V850, H8X, R5C series chips,current version is V2
Use method: Soldering the line on pin of chip before read & write
Notes:
(1) Please check all connection lines,ensure correct and reliable connection
(2) Please Don’t lengthen CLK and GND-C line, maybe cause read data failed.
 3. ECU Reflash Cable
Function: Read & Write engine ECU
Use method: Connect the ECU and R&W
Notes: Please check all connection lines, ensure correct and reliable connection
 4.MC9S12 Reflash Cable
Function: Read & Write MC9S08, MC9S12 series chips, current version is V1 Use method: Soldering the line on pin of chip before read & write Notes: (1) Please check all connection lines,ensure correct and reliable connection. (2) Please Don’t lengthen CLK and GND-C line, maybe cause read data failed.  Current Reviews: 0 |
