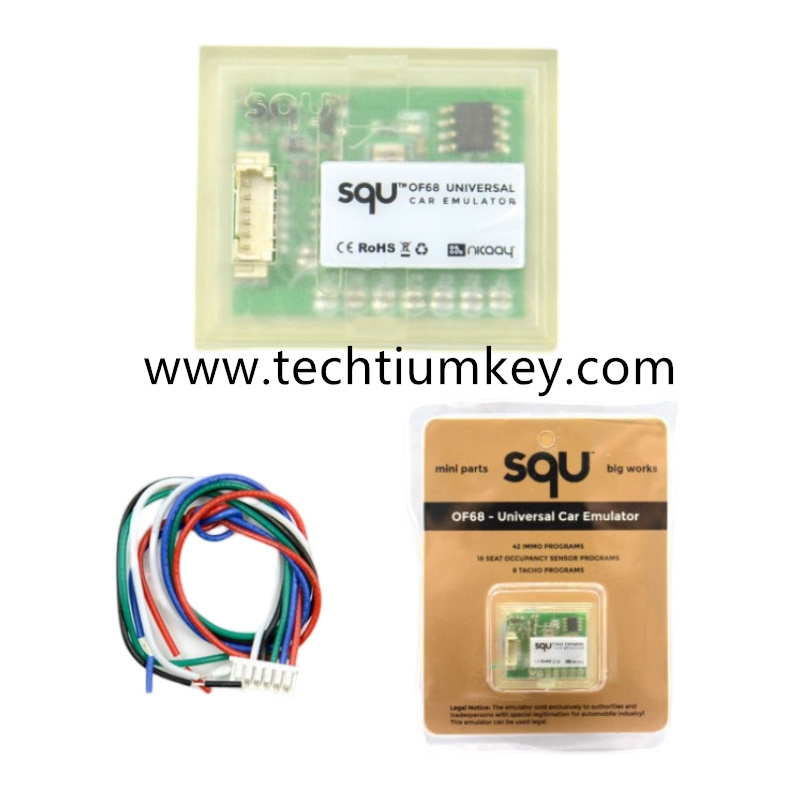

The SQU OF68 universal car emulator allows you to do:

Move the original immobiliser signal

Place the original immobiliser signal

Place the ESL, enable the car to start

ECK the EZS on the table

ECK the correctness of the airbag system

Art the tacho on the table

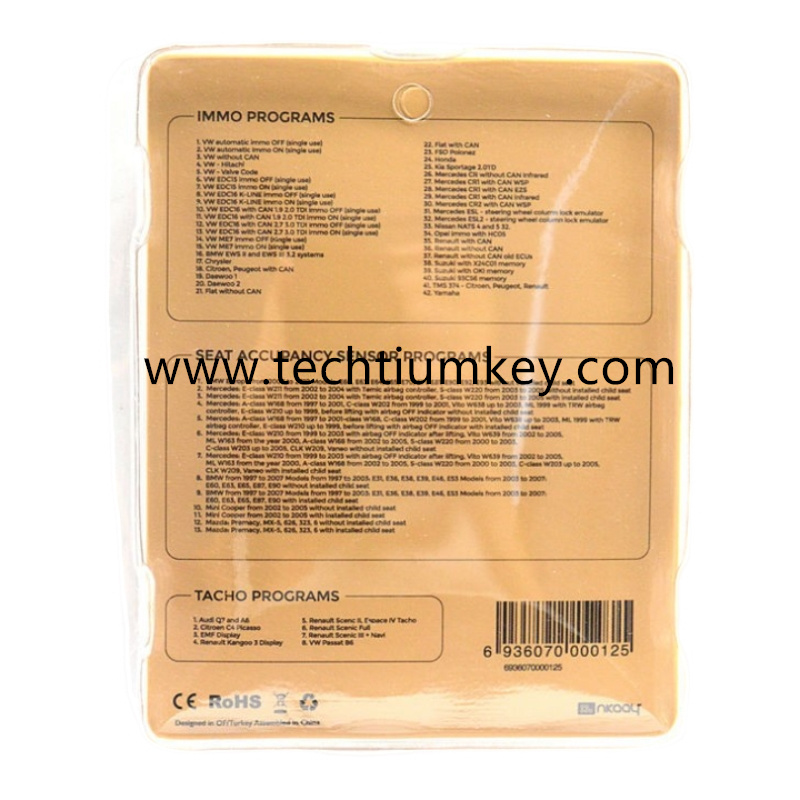

The SQU OF68 emulator comes with 68 programs that are dedicated to hundreds of car models and types of ECU.

You are allowed to choose from any of folllowing program:

1. Immo programs

2. Seat occupancy sensor programs

3. Tacho programs

The vast majority of programs can be used multiple times.

Program selection is effected by soldering jumpers from J1 to J7. To connect the emulator, please refer to specific installation manual.

 Immo Programs:

1. VW automatic immo OFF (single use)

2. VW automatic immo ON (single use)

3. VW without CAN

4. VW - Hitachi

5. VW - Valve Code

6. VW EDC15 immo OFF (single use)

7. VW EDC15 immo ON (single use)

8. VW EDC16 K-LINE immo OFF (single use)

9. VW EDC16 K-LINE immo ON (single use)

10. VW EDC16 with CAN 1.9 2.0 TDI immo OFF (single use)

11. VW EDC16 with CAN 1.9 2.0 TDI immo ON (single use)

12. VW EDC16 with CAN 2.7 3.0 TDI immo OFF (single use)

13. VW EDC16 with CAN 2.7 3.0 TDI immo ON (single use)

14. VW ME7 immo OFF (single use)

15. VW ME7 immo ON (single use)

16. BMW EWS II and EWS III 3.2 systems

17. Chrysler

18. Citroen, Peugeot with CAN

19. Daewoo 1

20. Daewoo 2

21. Fiat without CAN

22. Fiat with CAN

23. FSO Polonez

24. Honda

25. Kia Sportage 2.0TD

26. Mercedes CR without CAN Infrared

27. Mercedes CR1 with CAN WSP

28. Mercedes CR1 with CAN EZS

29. Mercedes CR1 with CAN infrared

30. Mercedes CR2 with CAN WSP

31. Mercedes ESL - steering wheel column lock emulator

32. Mercedes ESL2 - steering wheel column lock emulator

33. Nissan NATS 4 and 5 32.

34. Opel immo with HC05

35. Renault with CAN

36. Renault without CAN

37. Renault without CAN old ECUs

38. Suzuki with X24C01 memory

39. Suzuki with OKI memory

40. Suzuki 93C56 memory

41. TMS 374 - Citroen, Peugeot, Renault

42. Yamaha

Seat Occupancy Sensor Programs:

1: BMW Europe from 2007 to 2010 Models: E60, E63, E64, E65, E70, E71, E81, E90, E92, E93 without installed child seat

2: Mercedes: E-class W211 from 2002 to 2004 with Temic airbag controller, S-class W220 from 2003 to 2005 without installed child seat

3: Mercedes: E-class W211 from 2002 to 2004 with Temic airbag controller, S-class W220 from 2003 to 2005 with installed child seat

4: Mercedes: A-class W168 from 1997 to 2001, C-class W202 from 1999 to 2001, Vito W638 up to 2003, ML 1999 with TRW airbag controller, E-class W210 up to 1999, before lifting with airbag OFF indicator without installed child seat

5: Mercedes: A-class W168 from 1997 to 2001-class W168, C-class W202 from 1999 to 2001, Vito W638 up to 2003, ML 1999 with TRW airbag controller, E-class W210 up to 1999, before lifting with airbag OFF indicator with installed child seat

6: Mercedes: E-class W210 from 1999 to 2003 with airbag OFF indicator after lifting, Vito W639 from 2002 to 2005, ML W163 from the year 2000, A-class W168 from 2002 to 2005, S-class W220 from 2000 to 2003, C-class W203 up to 2005, CLK W209, Vaneo without installed child seat

7: Mercedes: E-class W210 from 1999 to 2003 with airbag OFF indicator after lifting, Vito W639 from 2002 to 2005, ML W163 from the year 2000, A-class W168 from 2002 to 2005, S-class W220 from 2000 to 2003, C-class W203 up to 2005, CLK W209, Vaneo with installed child seat

8: BMW from 1997 to 2007 ,  Models from 1997 to 2003: E31, E36, E38, E39, E46, E53

 Models from 2003 to 2007: E60, E63, E65, E87, E90 . without installed child seat

9: BMW from 1997 to 2007. Models from 1997 to 2003: E31, E36, E38, E39, E46, E53

 Models from 2003 to 2007: E60, E63, E65, E87, E90 . with installed child seat

10: Mini Cooper from 2002 to 2005 without installed child seat

11: Mini Cooper from 2002 to 2005 with installed child seat

12: Mazda: Premacy, MX-5, 626, 323, 6 without installed child seat

13: Mazda: Premacy, MX-5, 626, 323, 6 with installed child seat

Tacho Programs:

1. Audi Q7 and A6

2. Citroen C4 Picasso

3. EMF Display

4. Renault Kangoo 3 Display

5. Renault Scenc II, Espace IV Tacho

6. Renault Scenic Full

7. Renault Scenic III + Navi

8. VW Passat B6

Package:

1pc x SQU OF68 Universal Car Emulator
