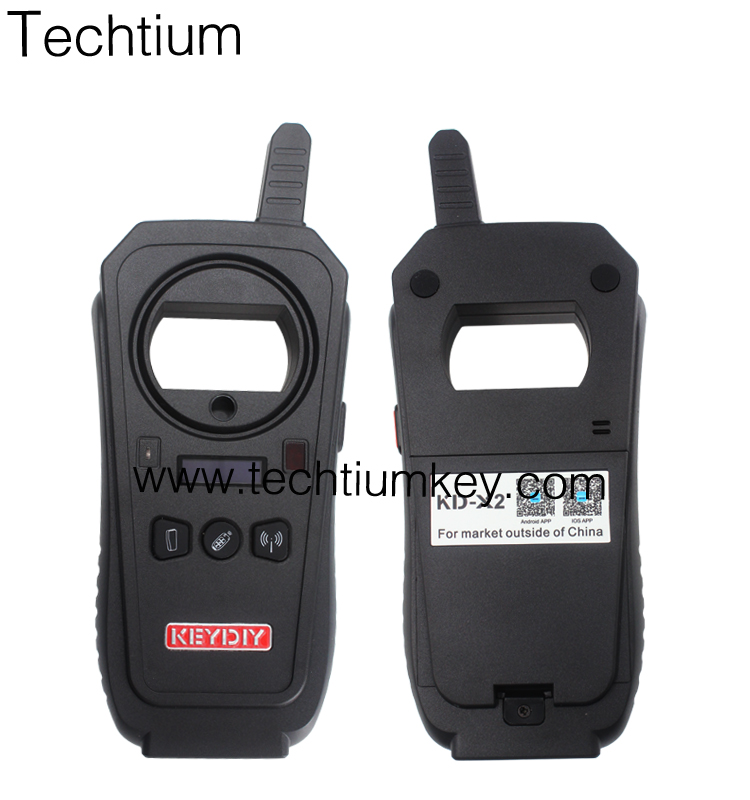

KEYDIY KD-X2 Remote Maker Unlocker and Generator-Transponder Cloning Device

The KDX2, is a multi-function auto key programmer which is very popular among locksmiths thanks to its small body and powerful functions.The KDX2 is more than just a cloner, it is also capable of copying transponders, read and write from / to transponders, execute a frequency test and generate type transponders, all in just a few simple steps.

The KDX2 also benefits from a built-in snoop device which notifies you when you have gathered the necessary snoop data on ID46 and ID48.
This key cloner is as small as a phone, meaning that you can simply put it in your pocket and take it with you. And in order to avoid the problem of power supply the KDX2, has been designed with a 1600mAh lithium battery, allowing you to decode hundreds of times when fully charged.

 KEYDIY KD-X2 Introduction:

1. Power supply: 2600mAh lithium battery; Charge method: USB 5V/1A
2. With 0.91inch OLED display screen.
3. Bluetooth BLE4.0 inside, work with mobile KD app by bluetooth connection
4. Can work with PC software by USB-B connection, and work with IOS Android phone or tablet by OTG connection.
5. With PS-2 interface for connecting remotes to generate.
6. Three functional shortcut buttons: chip identification, remote identification and frequency detection.
7. Free Activation of 96 Bits 48 Transponder Copy  (No Token Required)

KEYDIY KD-X2 Features:

1.No Tokens required for use
2.Continue free updates
3.Compatible with most manufactures chips on the market,such as Handy Baby,JMD,CN,VVDI etc.
4.Copies 96 bit (only) ID48 chips (Not the full range as per Keyoline Mini/884 are able to)
5.Works with a PC software connected via USB for Online only fucntions
6.Eliminates the need to purchase many other devices
7.Transponder Chip identification/to help choose the correct chip to program
8.Remote identification to help take the guess work out of the choice to program
9.Frequency detection,can also be used to check remote buttons are functioning correctly
10.Ignition coil detection,check  if the car itself is sending out a signal so to fault test
11.Plus many more additions and updates coming soon

KEYDIY KD-X2 Basic Functions:

1) Wired Generation.
2) Wireless Generation.
3) Mobile Phone Simulation.
4) Garage Door Generation.
5) Proximity Key Unlock.
6) Frequency Detection.
7) Infrared Detection.
8) Access Card Copy.
9) Fixed Code Remote Copy
10) Online HCS Remote Copy.
11) Online Chip Copy ( 96 bit 48chip, 46chip, 4Dchip, Toyota chip etc. )
12) Chip Generation.
13) Chip Editing.
14) Chip Simulation.
15) lgnition Coil detection.
16) Remote Data Backup.
17) Additional Functions Will be Available in Succession.

KEYDIY KD-X2 new version 5.0.0 with more new options:

1. Upgrade remote data service;
2. Improve the stability of remote upgraded;
3. Improve downloading speed and stability of the third party remote;
4. Generate the remote can get the kd-coins;
5. Use KD NB remotes to copy chips can get KD-coins;
6. Support to generate garage door remote.

KEYDIY KD-X2 Support Car List:

forAudi, forBaojun, forBcahy, forBenjin Auto,  Benz, for Besturn, for BMW, for BYD, for Cadillac, for Chang an, for Changfeng Motors, for Changhe,  Chevrolet, for  Chrysler, for Citroen, for Daihatsu, for Dongfeng, for Faw, for Fiat, for Ford, for Garage, for  Geely, for  GMC, forGreat Wall Automobile, for HaiMa, for Hawtai Motor, for Honda, for  Hyundai, for  Isuzu Iveco, for  Jaguar, for  Jianghua, for  Kia, for  Land Rover, for  Lincoln, for  Mahindra, for  Mazda, forMG, for  Mitsubishi, for  Nissan, for Opel, for Peugeot  Citroen DS, for  Porsche, forProton, for Renault, for Saipa, for Samand, for  Seat, forSkoda, for Ssangyong, for  Subaru, for  TATA, for Toyota for Lexus, for Volvo, VW, Zhongxing

The current coverage of the KDX2 includes:
Transponder Identification
The KDX2 can read and identify the following transponder types:
• Fixed code ID 11, 12, 13, 33 and 4C
• Philips Crypto 40, 41, 42, 44, 45, 46, 47, 49 and 4A
• Megamos 48, 48 Canbus
• Texas Crypto 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 6A, 6B, 70, 71, 72, 82, 83, 8C and 8E
• Most smart keys

Transponder Cloning
The KDX2 offers an extensive cloning range with the built-in snoop for ID46 and ID48 cloning.
Currently, the KDX2 can clone keys for:
• 4D/ 4C / 46 / 11 / 12 / 13 / 33 transponder clone
• ID48 (96 Bit) Only
• Fixed code (T5) – ID 11, 12, 13 & 33 using a carbon T5 chip
• Texas TX 4C
• Texas Crypto TX/CR 4D
• Philips Crypto PH/CR 46
• Toyota 80 Bit
• Megamos Crypto

Transponder Production
The KDX2 also has a good range of transponder production (image generator functions) included.
The transponder production coverage includes:
• ID4D / 60 / Epica60 / 61 / 62 / 63 / 64 / 65 / 66 / 67 / 68 / 69 / 6A / 71 / 72G 4C transponder
• ID48 type: Seat TP22 / VAG TP23 / Skoda TP24 / Audi TP25 / Seat TA22 / VAG TA23 / Skoda
• TA24 / Audi TA25 / Fiat ID48 / Jetta ID48
• ID46 type: Great Wall (STEC) / Zotye (STEC) / Ha/ma (STEC) / Maple (STEC) / Geely (SETC) /
• Cherry (STEC) / Zhonghua230 / Zhonghua530 / VW46 (2007-2008) / X-Trail (2008-2009)
• Renault (Maste.II) / Renault (Trafic II) / Opel (Vivaro) / Opel (Movano) / Renault (Espace IV)
• Renault (Laguna II) / Renault (Velsatis) / Renault (Twingo) / Citroen / Fiat / Lancia / Peugeot (206/307)

Transponder Production coverage continued…
• Mitsubishi / Cruze / Siemens / Changhe / Suzuki / GM / Beidouxing
• T5 type: 11 / 12 / 13 / 33
• ID47 type: Honda
• Id63 ford 80 bit

Signal Test
The KDX2 can check a remote's frequency as well as identify type (i.e. ask or FSK), including:
• Frequency Test (remote, ASK/FSK)
• ECU signal test (check if the coil works or not)

Simulator
The KDX2 allows you to simulate the key before you clone it, to ensure working correctly prior to cloning a chip on:
• ID46
• ID4D

Transponder Edit
The KDX2 allows you to read, write and edit chip data on 4D / 46 / 48 / 47 / 4D DST/8A etc

ID48 Activation is FREE Ready to use on your New KD-X2 Machine

To use the ‘Copy’ function, this is FREE* Or Packs can be Ordered**
FREE* (150 Key DIY Coins are needed for use to clone 1 x ID48 chip)
To use the ‘Copy’ ID48 (96bit) function for FREE you will need to use KD COINS, which are obtained every time you use the machine to generate.

• The more you use the machine – the more FREE KD Coins you received to Copy ID48 (96bit)
• Every 1st time you Generate a “ B “ Remote you receive Free 20 KD Coins
• Every 1st time you Generate a “ NB “ Remote you receive Free 10 KD Coins
o Example 1, for every 7 x “NB” plus 1 x “B” 1st time generation you receive 150 FREE Coins equal to 1 x FREE to Copy ID48 (96bit)
o Example 2, for every 8 x “NB” 1st time generation you receive 160 FREE Coins equal to 1 x FREE to Copy ID48 (96bit) with 10 spare KD Coins
o Example 3, for every 15 x “B” 1st time generation you receive 150 FREE Coins equal to 1 x FREE to Copy ID48 (96bit)
Packs can be Ordered** (150 Key DIY Coins are needed for use to clone 1 x ID48 chip)
If you need to use this function in cases where you cannot wait to generate remotes to receive your FREE to use Copy ID48 (96bit) function, you can look to purchase KD Coins.
• Purchase x1 use Copy ID48 (96bit) for £9.99 each +VAT (equal to 150 Key DIY Coins)
• For more info on KDX2 Coins, please contact the office on 01902 366 448.

How to Use KEYDIY KD-X2 to Identify Chip Type?

Put the chip you want to identify into the chip slot,then press the "Chip Identification" button.

Customer Feedback:
I just updated to version 4.6.2 and the REMOTE UNLOCK option is now available. Unlock key means in this case unlocking used keys so they can be reused , thus cutting costs on new keys by unlocking and using 2nd hand keys.

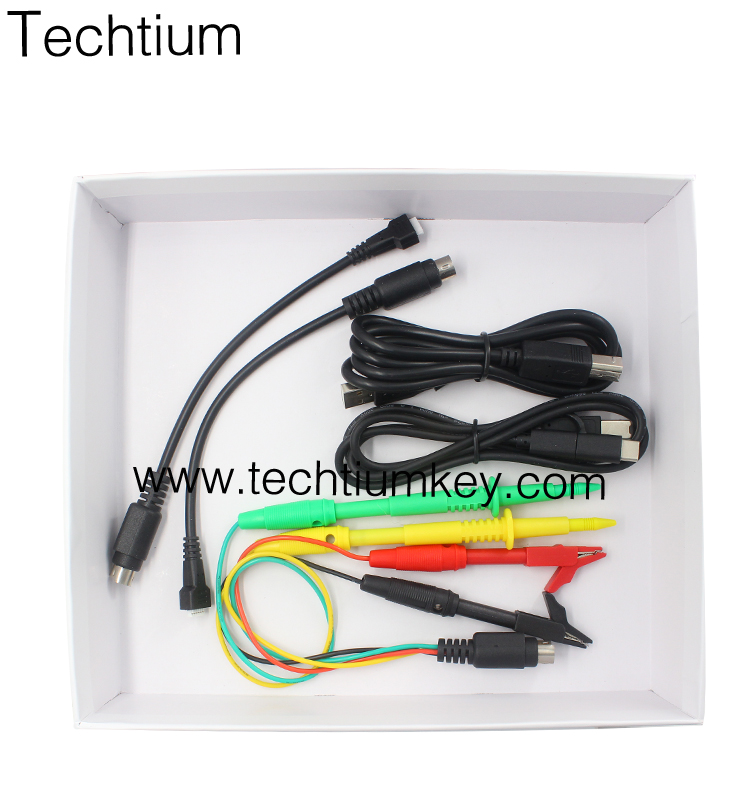

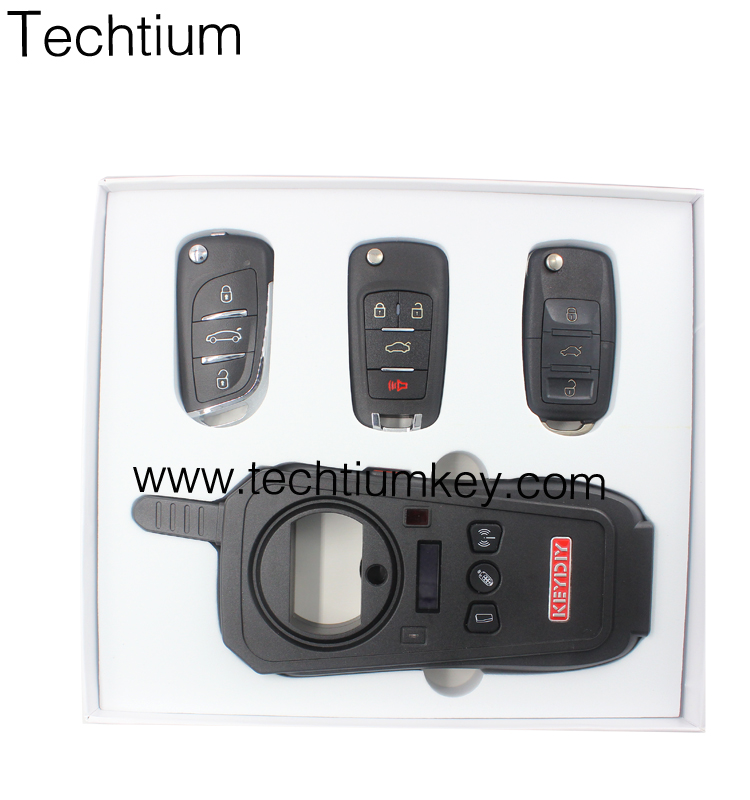

KEYDIY KD-X2 Remote Maker Package List:

1pc x KEYDIY KD-X2 Main Unit
1pc x PC Data Cable
1pc x 3 Commonly Remotes
1pc x Remote Data Cable
1pc x Spare Remote Data Cable
