VNCI J2534 Nano Compatible with J2534 Passthru & ELM327  Diagnose J1979 Compatible Vehicles

VNCI J2534 Nano Compatible with J2534 Passthru & ELM327  Diagnose J1979 Compatible Vehicles

log in for price

  • Model: DT-24
  • Shipping Weight: 0.3kg
  • Units in Stock 99999
    		•
    PayPal Acceptance Mark
    0  reviews:

    Product 36/36
    Previous
    Return to the Product List
    Next


    Add you Tags
    • Description
    • Shipping
    • Payment
    • You may also like
    Details:

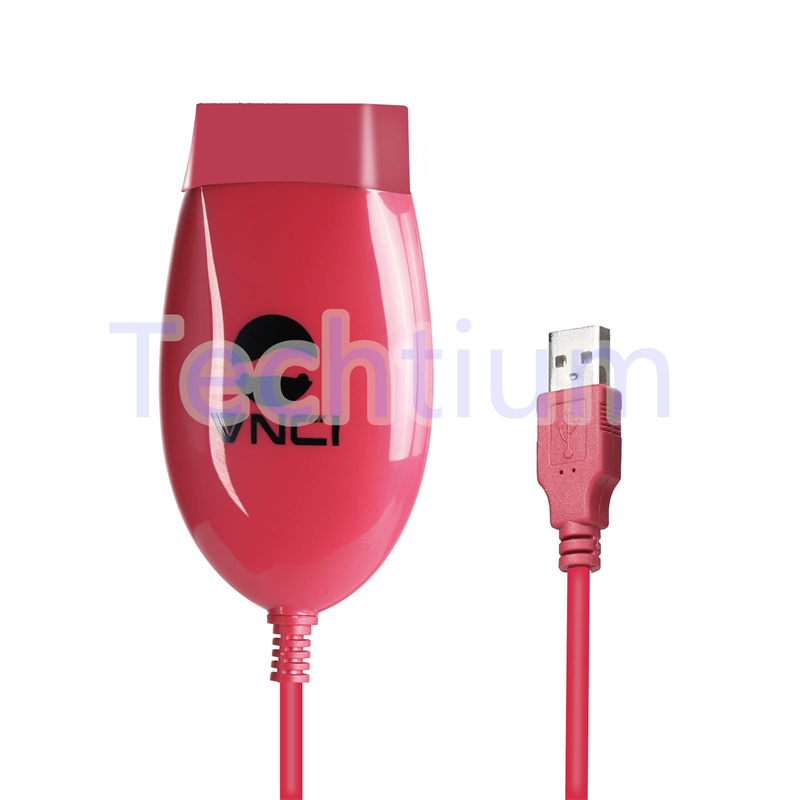

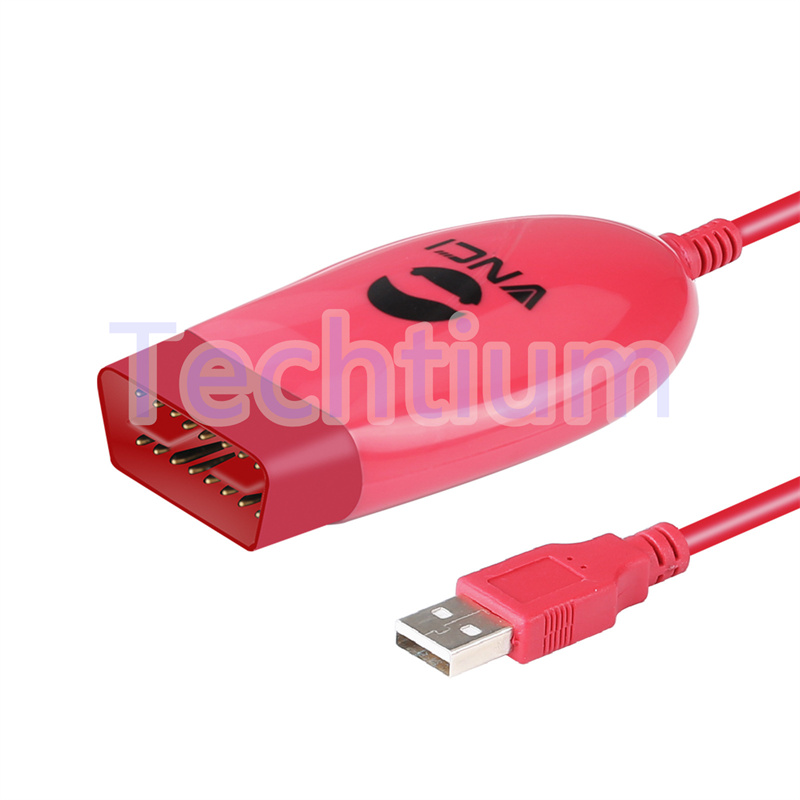

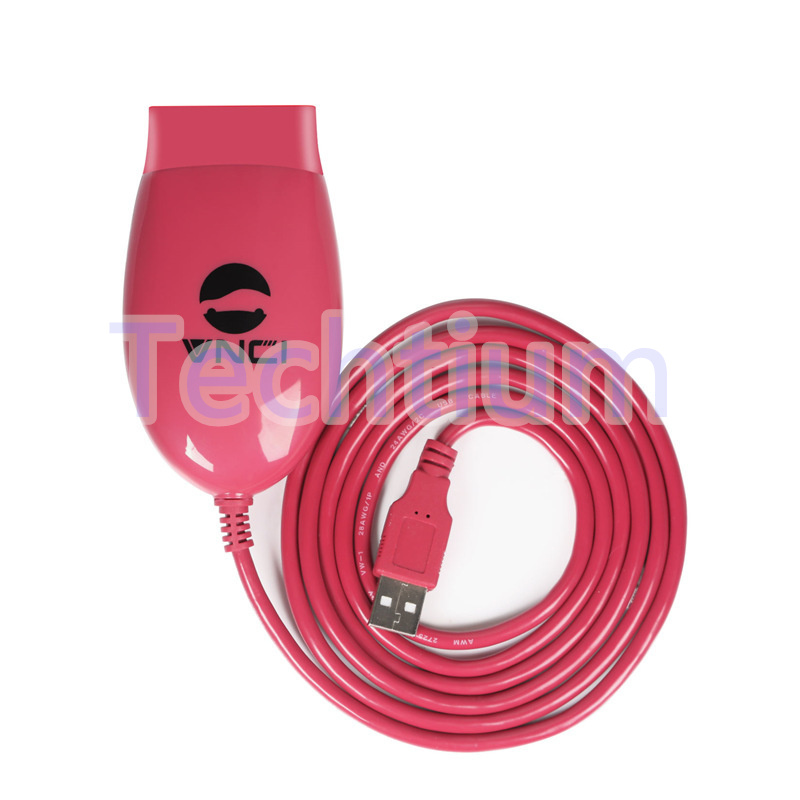

    VNCI (Vehicle Network Communication Interface) is a device that works between diagnostic software and vehicle. It is compatible with J2534 Passthru and ELM327.
    Product Highlights:
    1. Support most all of J2534 compatible software(HDS, TIS, ODIS, JLR SDD, PCM...).
    2. Support most all of ELM327 software(ELMConfig, Forscan, ScanMaster...).
    3. Support ECU reprogramming in J2534 mode with programming voltage.
    4. Supply free software for diagnosing J1979 compatible vehicles.
    5. Support Windows 8/10/11, 32/64bit



    Supported languages of compatiable softwares:

    ODIS software: English, Japanese, Portuguese, Romanian, Korean, Dutch, Polish, Turkish, Spanish, French, Italian, Croatian, Danish, German, Swedish, Finnish, Slovenian, Czech ,Russia, Greece, Chinese


    For Toyota Techstream software : English, French, Spanish, Japanese, German, Italian, Russian, Turkish, Chinese


    For Honda HDS software: English, German, Czech, Dutch, Finnish, French, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Turkish, Japanese ,Chinese
    JLR SDD software: German, English, Spanish, French, Italian, Dutch, Portuguese, Russian, Japanese, Chinese, Korean
    Forscan software: English, Russian, Polish, Italian, German, Hungarian, Turkish, French, Latvian, Bosnian, Finnish, Romanian, Portuguese, Traditional Chinese, Simplified Chinese, Czech, Lithuanian, Slovak , Ukrainian
    Scanmaster elm 327 software : English, Czech, German, Spanish, French, Hungarian, Italian, Polish, Serbian, Turkish, Danish, Croatian
    Pcm-flash software: English, Russian

    Note for pcm-flash 1.20: Customers need to buy a dongle (pcmtuner dongle ), and only supports the OBD part. It does not support bench, boot, vag, dsg and gearboxes.






    VNCI J2534 Nano protocol configuration:
    1. ISO15765 (Standard/Extended frame).
    2. ISO9141.
    3. ISO14230.
    4. J1850 PWM (Support IFR and 2X speed mode).
    5. J1850 VPW (Support 4X speed mode).
    6. Programming voltage.
    7. Short to ground.
    8. ELM327 with command set version 1.5a



    VNCI J2534 Nano hardware configuration:
    1. ISO11898-2 high speed CAN (OBDII PIN 6 and PIN 14. Speed up to 1000Kbps).
    2. ISO9141 and ISO14230 K line (OBDII PIN 7 and PIN 15).
    3. J1850 PWM (OBDII PIN 2 and PIN 10).
    4. J1850 VPW (OBDII PIN 2).
    5. Programming voltage (OBDII PIN 12 or PIN 13. Programming voltage up to 20V).
    6. Short to ground (OBDII PIN 9. Short to OBDII PIN5).
    7. Dimension(L*W*H): 95mm*55mm*23mm
    8. Environmental:-20℃-45℃(-4℉-113℉)
    9. Vehicle voltage requirements: 8-18V DC
    10. Vehicle connection: Molded DLC3(OBDII-16)
    11. Host connection: USB 2.0





    VNCI NANO J2534 Function List:



    Software

    Brand

    Year

    NOTE

    For Toyota TIS Techstream

    For Toyota/ Lexus

    1995-2022

    Free download and activate software, update by link

    For Honda HDS 3.102

    For Honda Acura

    1995-2022

    Does not support non-#7 K-line, update by link

    ODIS-S, ODIS -E

    For VW Audi Skoda Seat

    1995-2022

    For J2534 VAG only. Don’t support CAN FD protocol, Don’t support Ignition switch voltage detection

    Forscan 2.3.48

    For For.d Mazda Lincoln

    1996-2022

    Cannot do 3, 11 medium speed CAN

    Scanmaster V2.0



    1996-2022

    Free download and activate software

    PCM-Flash V1.2.0

    67 modules

    1996-2022

    Yes, test by your side

    J1979Tester



    1996-2022

    Free For Honda immo code calculation

    ELMConfig



    1996-2022

    Yes, test by your side

    For Volvo VI-DA

    For Volvo

    1996-2022

    Yes, test by your side

    JLR SDD2

    For Jaguar Land rover

    2006-2016

    Yes, test by your side

    GDS2

    For GM Buick Cadilac Chevlert

    1995-2022

    Yes, test by your side

    Xentry Passthru

    For Benz/ Smart

    1995-2022

    Yes, test by your side

    ISTA-D, ISTA-P

    For BMW/ Mini

    1995-2022

    Yes, test by your side

    Consult III-R2R

    For Nissan/ Infiniti

    1995-2022

    Yes, test by your side






    Package Includes:
    1pc x VNCI J2534 Nano
