OBDSTAR DC706 ECU Tool Full Version ECM,TCM, BODY Clone Software

OBDSTAR DC706 ECU Tool Full Version ECM,TCM, BODY Clone Software

log in for price

  • Model: OBDSTAR-17
  • Shipping Weight: 3.6kg
  • Units in Stock 10000
    		•
    PayPal Acceptance Mark
    0  reviews:

    Product 5/22
    Previous
    Return to the Product List
    Next


    Add you Tags
    • Description
    • Shipping
    • Payment
    • You may also like
    Details:






    Product Function:

    ECU Clone/ All by OBD or Bench

    Single Software only,Three standard versions for selection

    1. ECM clone for cars(Bosch, Continental, Delphi, Denso, Magneti Marelli, Siemens...)

        ECM clone for motorcycles(Bosch, Delphi, EFI...)

    2. TCM clone(Ac Delco, Bosch, Continental, Getrag, GM, Kefico, Siemens, Temic, ZF...)
    3. Body/Other clone(FCA, FIAT, FORD, GM/OPEL, LAND ROVER/JAGUAR, PSA, SMART, VOLVO...)

    Notice: Versions of DQ250 models before 2008 are not supported, and the protocols are different.

    OBDSTAR DC706 Configurations

    Configuration

    Software

    DC706_ EN A

    ECM

    DC706_ EN_ B

    TCM

    DC706_ EN_ C

    BODY

    DC706_ EN D

    ECM+TCM

    DC706_ EN E

    ECM+B0DY

    DC706_ EN F

    TCM+B0DY

    DC706_ EN_ FULL

    ECM+TCM+BODY





    Supported ECU Manufacturers:



    ALPS

    Autoliv

    Bosch

    Continental

    Delphi

    Denso

    Johnson Controls

    Lear

    Magneti Marelli

    Siemens

    Temic

    Valeo



    Supported Brands:



    Car

    ASTON MARTIN

    BMW

    FAW

    FCA(ALFA ROMEO, CHRYSLER, DODGE, FIAT...)

    FORD/LINCOLN

    GM/OPEL

    HYUNDAI/KIA

    LAND ROVER/JAGUAR

    LUXGEN

    MASERATI

    MAZDA

    MITSUBISHI

    NISSAN

    OPEL

    PSA

    SMART

    SUBARU

    SUZUKI

    VOLVO

    VW/AUDI/SEAT/SKODA



    Motorcycle:



    APRILIA

    BRP

    CFMOTO

    DERBI

    GILERA

    GUZZI

    PEUGEOT

    PIAGGIO

    QJBENELLI

    VESPA



    Advanced Functions:



    1. R/W eeprom/dflash/pflash/Map, reset ECU(Virgin), calibrate mileage, read IMMO pincode, ECU recovery...
    2. Support 710+ ECM types(Partial functions require P003 adapter.)
    3. Support 120+ other ECU types(AIRBAG, BCM, BSI, CEM, DDM/PDM, DIM, EPS, KeyLess(RFHUB/RFHM), KVM, RFA, SAM...)
    4. Support VW DQXXX (TCM) calibrate mileage
    5. Support motorcycle Delphi MT05, MT05.2, MT05.3 ECU clone
    6. Support motorcycle BRP ME17.8.5 ECU clone (works with P003 adapter)
    7. Support Piaggio series engine ECU clone(such as MIU G4 (M4G1))
    8. Support intelligent search by brand, model, part No., ECU manufacturer, MCU controller type
    9. Support automatic identification
    10. Strong help data files
    11. All by OBD or Bench mode



    More functions are in developing...

    Product Specifications:

    Operation system

    Android 5.1.1

    CPU

    RK3128 quad-core ARM cortex A7

    Battery

    3700mA, rechargeable polymer lithium battery

    Extension memory card

    32G micro SD (TF) card supported

    Storage capacity

    16GB

    LCD

    7.0 inch

    LCD resolution

    1024*600

    Touch screen

    Capacitive touch screen

    Wifi

    Supported

    Working temperature

    -20℃~55℃ (14℉~131℉)

    Storage temperature

    -20℃~70℃ (-4℉~158℉)

    Weight

    About 1.3kg

    Dimension

    243mm*148mm*36mm

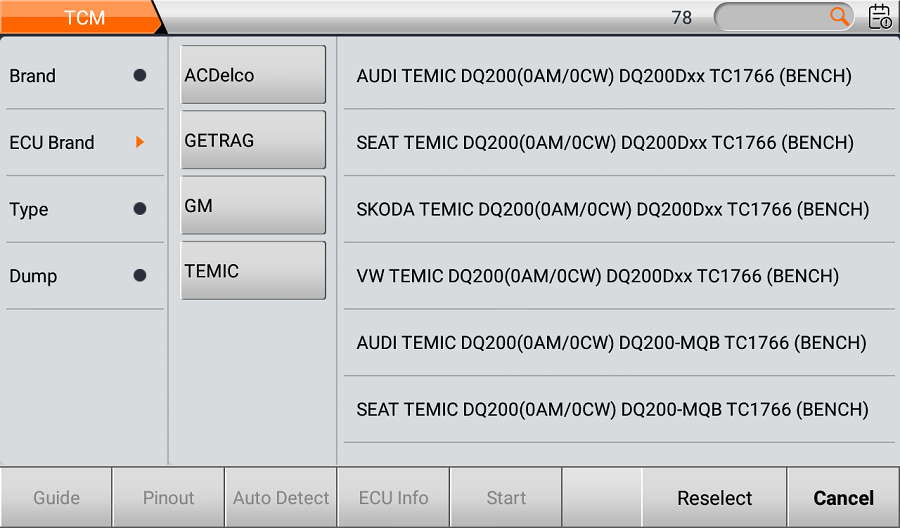

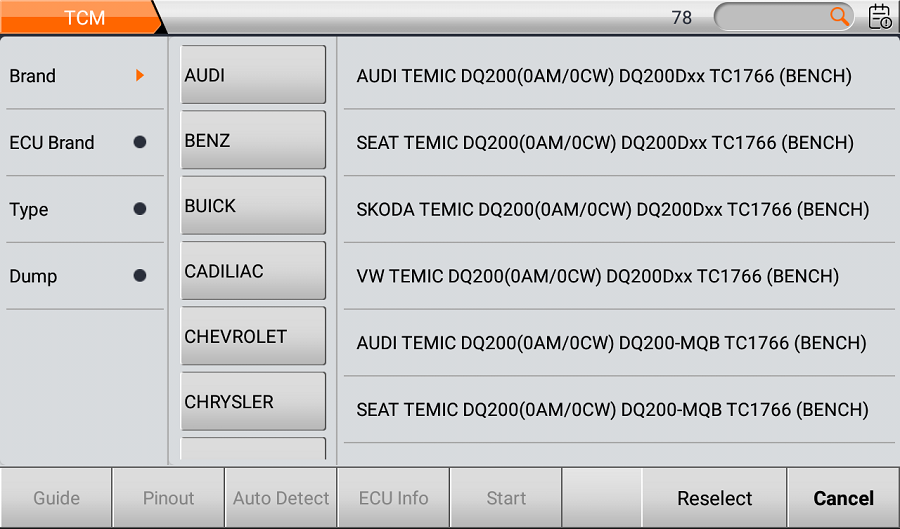

    Function Display:



    1) Main Page/Brand Supported







    OBDSTAR DC706 ECU Tool + For ECM




    OBDSTAR DC706 ECU Tool + ECM Clone for Motorcycle

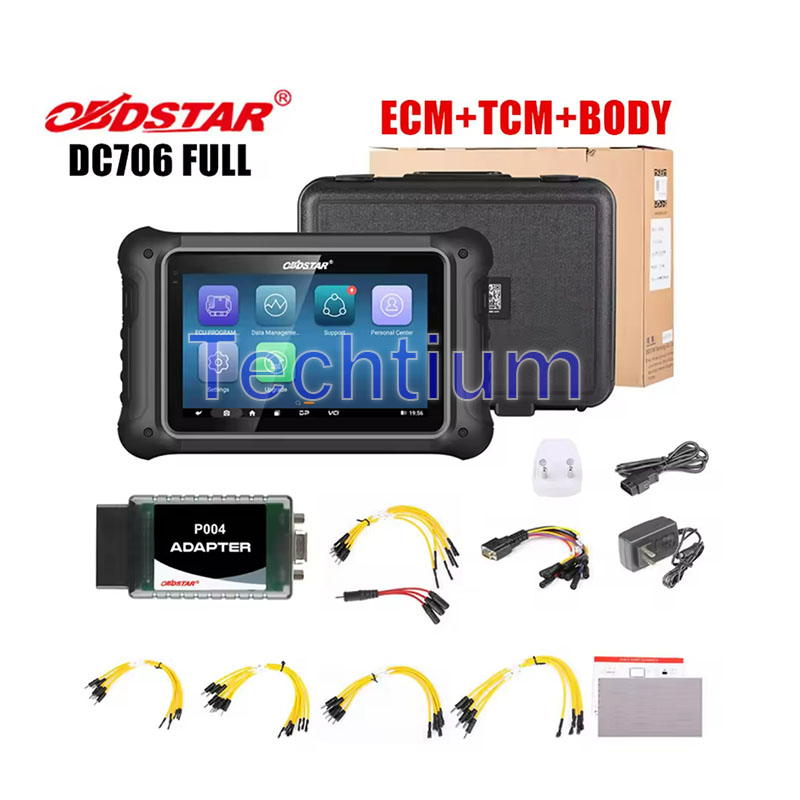

    Package Includes:

    1pc x DC706 Main Unit
    1pc x main cable
    1pc x P004 adapter
    1pc x P004 ECU clone jumper
    1pc x 12V2A charger
