Details:

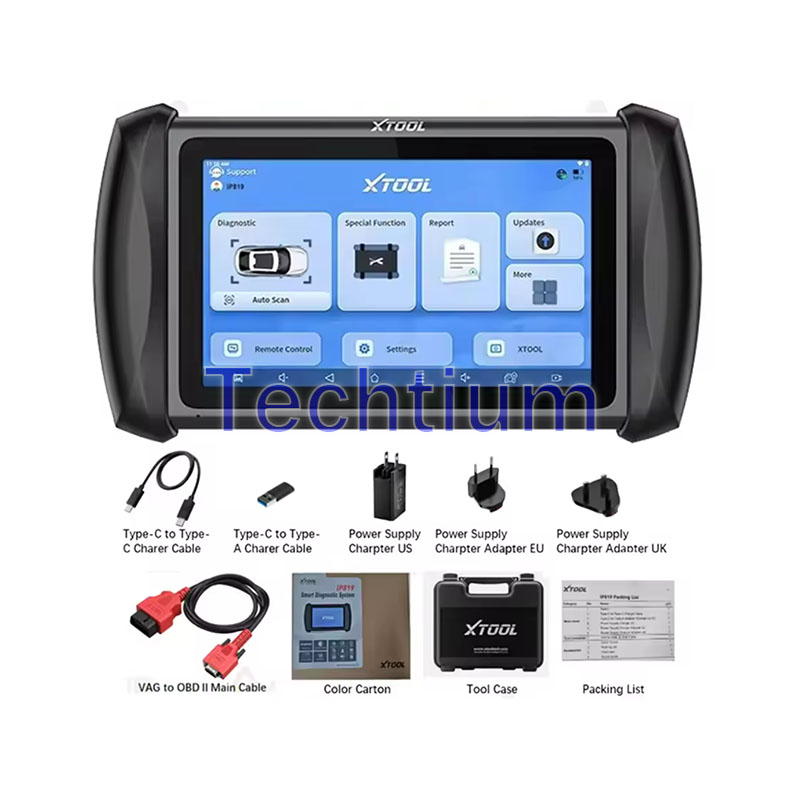

XTOOL IP819 Bi-directional Control Scan Tool, 2024 Car OBD2 Scanner Diagnostic Tools, Upgrade of IP616/D7, 3-Year Updates, All Systems Diagnosis, ECU Coding, Key Programming, CAN FD Support, ADAS Calibration, ECU Configuration, VAG Guided for VW, 36+ Resets, TPMS Reset, ABS / SAS / EPB / BMS Reset, Key Programming, 8-in-1 Live Data Graphing, 15+ Language Support, and Wide Vehicle Coverage, for BMW, for Benz, for VW, for Lexus...

1. OE-Level All System Diagnostic

Complete capabilities for codes, live data, freeze frame, active tests, and ECU information.

2. Full OBD2 Functions

1)Reading Codes 2)Clear Codes 3)Live Data 4)I/M Readiness 5)Module Present 6)Read Freeze Frame

7) O2 Sensor Test 8)On-Board Monitor Test 9)Vehicle Information 10)Component Test.

3. Key Programming

Perform advanced IMMO & key programming functions for Auto Lock-Smith.

4. ECU Coding & Configuration

To Improve vehicle performance , Make a new code , Recognize the new actuators, and Car systems to recognize each other and Recognize the new actuators.

5. 36+ Reset Services

IP819 car diagnostic scanner covers 36 popular special functions of car service tools, such as ABS Bleed, Oil Reset, DPF, EPB, BMS Reset, HV Battery, Power Balance, SAS, A/C Relearn, VGT Relearn Injector Coding, TPMS Reset, Throttle, Headlight, Crankshaft sensor Relearn, Suspension, Transmission Match, Tire Upgrade,Instrument Cluster etc.



6. CANFD Protocol & VAG Guided

Supports CAN FD protocol vehicles(for GM 2020+ cars). Provide instructions step by step when you are performing complicated special functions like ECU Coding on VW/AUDI/SKODA with VAG Guided.

7. 8-IN-1 Live Data Graphing

Show live data in text or graph like misfire data, engine rpm, etc, Retrieve freeze frame data from the ECUs to show the parameters when a DTC is recorded.

8. Bi-directional Control & Active Test

Control various car components and subsystems to perform active tests like EVAP test, idle relearn, etc.

9. 15+ Language Support & Wide Vehicle Coverage

Inplus IP819 supports 15 languages, including English, German, Spain, French, Polish, Portuguese, Russian, Italian, Turkish, Traditional Chinese, Japanese, Korean, Vietnamese, Arabic, Finnish,etc. Works on 90+ American, European, and Asian brands to perform diagnostics.

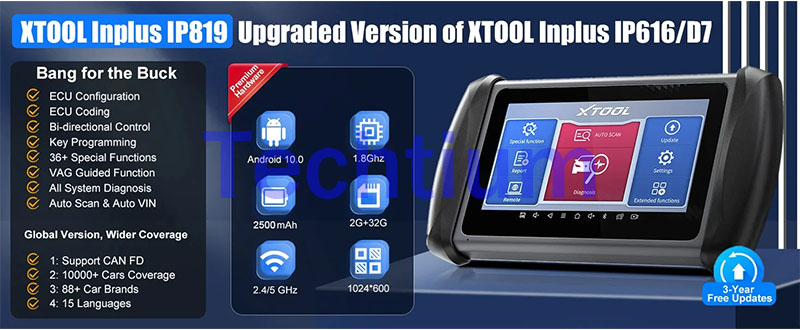

10. Advance Hardware & 3-year Free Update & 5-year Warranty

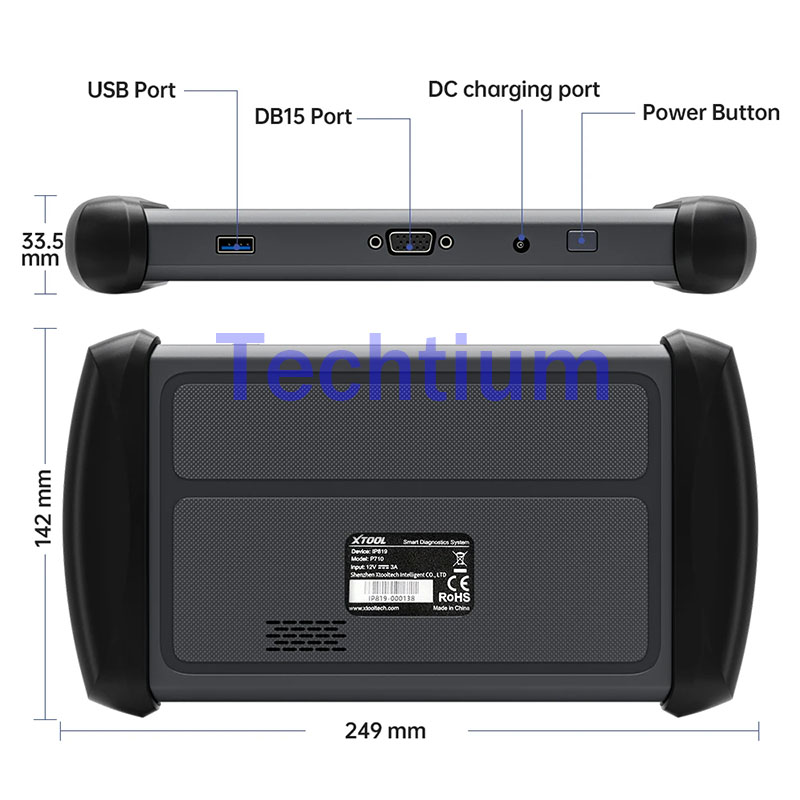

Battery Upgrade！2024 Newest Version upgrade to 2500mAh, 7.3v Battery. It greatly extends its service life. and 7.0-inch touch screen with 1024×600 resolution, Quad-core 1.8Ghz processor, 2+32G Memory, USB/Wi-Fi/Wired Connection. With reliable Service, such as 3-year free update, 5-year warranty, 24/7/365 online service and technical support...

11. Auto Vin & Auto Scan

Automatically detects and decodes the vehicle VIN number for a comprehensive all-systems scan for quick diagnostics.

OE-Level All System Diagnostic

Inplus IP819 can perform complete system diagnoses to check ECU info, read codes, clear codes, read freeze frame and live data. It can carry out a comprehensive diagnosis for cars' system, such as the engine, airbags, chassis, body, network system, transmission, anti-lock system, etc.



It is suitable for all system, including ABS system, Engine system, SAS system, TPMS system, IMMO system, Battery system, Oil service system, SRS system, etc...ECM System (Engine Control Monitor), SRS (Supplement Restraint System), TCM (Transmission Control Module), IMMO (Immobilizer), ABS (Anti-lock Braking System), TPMS (Tire Pressure Monitoring System), BMS (Battery Monitor System), etc.



Full OBD2 Functions

Read Trouble Codes

Show the detailed description of the Diagnostic Trouble Code (DTCs).



Clear Trouble Codes

Turns off Check Engine Light (MIL), clears codes and resets monitors.



Live Data

Show the information of continuous live data and data stream from a vehicle in a live graphic (waveform) display.



Read Freeze Frame

Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.



Read ECU Information

Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID), CVN (Calibration verification number), etc.



Component Test

Certain vehicle components can be actuated by commands sent from the scanner to test their operability.



On-Board Monitor Test

Retrieves and displays test results for emission-related power train components and systems.



O2 Sensor Monitoring Test

Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s onboard computer.



I/M Readiness

Shows whether the various emissions-related systems on the vehicle.



DTC Lookup

Pre-packed with a comprehensive DTC Lookup Library to help you figure out what each code means, making the diagnosis process more straightforward.

36+ Reset Functions

Inplus IP819 offers a powerful function, including Oil Light Reset / EPB / SAS / DPF / BMS Reset / Throttle / TPMS Reset / ABS Bleeding / Injector Coding / Key Programmer / Gearbox Match / Suspension / Window Initialization / Seat Match / Headlight / ECU Configuration / A/F settings / Start/Stop Reset / Airbag Repair / Instrument Cluster / Language Change / Transporte Mode / Tire Upgrade / Gear Learning / Power Balance / EEPROM / Electronic Pump Activation / EGR Relearn / VGT Relearn / HV Battery / A/C Relearn / Speed Limit / Clutch Adaption / FRM Reset / Rain/Light Sensor / Reset Control Unit.



Oil Reset: Reset service intervals after oil change and turn off the oil light.



EPB Reset: Reset the calipers, brake discs or pads after the electronic parking brake system is repaired or replaced.



SAS Adjustment: Perform calibration of the steering angle sensor to clear the fault steering angle sensor memories.



BMS Reset: Register the new battery to the ECU after replacement.



Throttle Relearn: Enables you to make initial settings to throttle to adjust the amount of air intake.



ABS Bleeding: Perform ABS Brake Bleed function to cycle the ABS pump to bleed the air out of the ABS.



Injector Coding: Coding injectors after replacement.



Transmission Match: Reset the adaptive shifting points in your automatic Transmission Control Unit.



TPMS Reset: Reset the tire pressure monitor system, maintaining your TPMS helps enhance safety...



Note: Special Services do NOT work on all cars. Please Come to us with VIN and functions to check the compatibility before purchase.

ECU Coding & Configuration

1. ECU Coding

Improve vehicle performance:To Make the vehicle safer and smoother while driving, to ensure the longevity of the vehicle.



Make a new code: Power Window, Illuminated Entry, Warning, Light Control, Slide Roof, Air Conditioner, Display, Unit Conversion, Entry & Start, PSD & PBD Operation, Seat…



Recognize the new actuators: Can online modify the adaptive data for vehicle control modules after repairs or replacements of vehicle parts.



Car systems to recognize each other: To make the various systems of the car match each other and work with each other so that all the systems in the car work well.



Recognize the new actuators: New components and systems can be quickly identified after replacement parts or repairs.



2. ECU Configuration

Unlock Hidden Functions and Customize Vehicle Settings: you can activate the higher-level car functions and disable the annoying features. Customize some extra options according to your needs. (Disable daytime running light, Disable seat belt chime, Fold rear-view mirror, etc.)



Note: Unlock Hidden Functions work on specific vehicles. Please check compatibility with VIN before purchase.



Key Programming

Key programming means matching a smart key to a specific vehicle's security system. This process ensures that only the programmed paired key can start the vehicle, greatly increasing security. It is mainly used to replace lost or damaged car keys or to add additional spare keys. A thorough key programming process involves encoding a wireless signal between the smart key and the car, ensuring that the car receives and recognizes the signal and works as intended.



XTOOL IP819 offers key programming functions like programming new key fobs, reading PIN Code, adding smart keys, remote learning.



Main Functions:

1.Key All-lost Matching

2.Key Add Matching

3.Key Info Reset

4.Key Adding

Bi-directional Control (Active Test)

Full control over various car components, parts to perform active tests like EVAP test, cooling fan, injector test, cycling ABS motor pump, A/C Clutch Switch On/Off etc.

1. Turn on the Radiator Fan

2. Modulate the throttle

3. Open/Close Window

4. Injector Test

5. Operate mirrors

6. Modulate the Throttle

7. Turn on/off the Lights

8. Turn on/off the Sound Horn

9. EGR Test

10. Test door lock...



Note: The menu of active tests available varies across vehicle make, model, and year.

8-IN-1 Live Data Graphing

Display live data PIDs like oil pressure, fuel temperature, coolant temperature, transmission oil temperature, fuel trim, O2 sensors, ATF temperature, cylinder balance rates, engine speed, etc. Show them in text or graphs individually.

1. You can also graph many PIDs together in one graph for better comparison, 8 PIDs at most currently.

2. Use the "Export CSV" option to export live data to CSV files so you can perform further analysis.

3. Use the search icon on the top right corner to quickly look up the live data you need.

CAN FD Protocol Support

Xtool IP819 Support including 12V sedans, light duty trucks, minivans, SUVs including newer vehicles that support CAN FD protocol (for GM 2020+)



Health Report Share + Print Diagnosis Reports

Customize your report with the business name, and address. Click " Print PDF Report " at the bottom right corner to output the PDF report.



15+ Kinds of Language

XTOOL InPlus IP819 Supports 15 Kinds of Language: English, Spanish, German, French, Portuguese, Korean, Polish, Italian, Finnish, Arabic, Japanese, Thai, Russian, Traditional Chinese.

Note: if you want to change the language, please come to us with device serial number (on the back of the tablet).

90+ Car Brands Wide Support

XTOOL IP819 includes more than 10000+ car model software Including Europe, Asia, America, Australia, and China Cars. Enjoying a 3-year free update, more and more new car models will update online.

For America: For Buick, For Cadillac, For Chevrolet, For Chrysler, For Dodge, For Ford (USA), For GM, For GMC, For Hummer, For Jeep, For Lincoln, For Saturn.

For Europe: For Abarth, For Alfa Romeo, For AstonMartin, For Bentley, For Bugatti, For Citroen, For Dacia, For Ferrari, For Fiat, For Ford (EU), For GAZ, For Jaguar, For Lamborghini, For Lancia, For Landrover, For Maserati, For Maybach, For MINI, For Opel, For Peugeot, For Po-rs-che, For Renault, For Rolls-Royce, For Skoda, For Smart, For UAZ, For Vauxhall, For VAZ, For VW-CV.

For Asia: For Acura, For Daewoo, For Daihatsu, For Honda, For Hyundai, For HyundaiCV, For Infiniti, For Isuzu, For Kia, For Lexus, For Luxgen, For Mazda, For Mitsubishi, For Nissan, For Nissan GT-R, For Perodua, For Proton, For Renault Samsung, For Scion, For Ssangyong, For Sub-aru, For Suzuki, For Tlisuzu, For Toyota.

For Australia: For Ford (AU), For Holden.



Note: Not all car models are supported, send specific car models to consult the seller before purchasing.

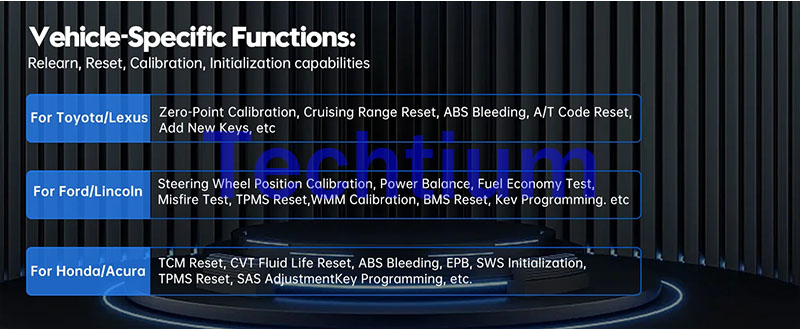

Vehicle-specific Functions: Relearn, Reset, Calibration, Initialization capabilities

For Toyota/Lexus: zero-point calibration, cruising range reset, ABS bleeding, A/T code reset, add new keys, etc.

For Ford/Lincoln: steering wheel position calibration, power balance, fuel economy test, misfire test, TPMS reset, WMM calibration, BMS reset, key programming, etc.

For Honda/Acura: TCM reset, CVT fluid life reset, ABS bleeding, FPB, SWS initialization, TPMS reset, SAS adjustment, key programming, etc.
