Vident iEasy310Pro OBD2 Scanner Automotive Code Reader Engine Check Diagnostic Scan Tool OBDII EOBD Scanner DTC Looku Free Update

��【All 10 Modes of OBDII Tests】

Vident iEasy310Pro OBDII scanner can perform all 10 modes of OBDII tests for complete OBD2 diagnosis, including reading codes, erase codes, view live data, patented one-click smog check, freeze frame data, O2 monitor test, on-board monitor test, component test, view vehicle information, module present. VD20 scanner is the most complete & cost-effective OBD2 code reader for home mechanics and DIYers to solve check engine light issues and daily quick checks.

��【Turn off Check Engine Light(MIL)】

Vident iEasy310Pro can check engine code reader offers complete OBDII diagnostics from pulling DTCs, reading live data stream of various sensors, capturing freeze frame data to show how the issue happened, to even performing On-Board Monitor Test(Mode 6), O2 Monitor Test, and Component Test to check misfire and fuel system to locate bad O2 sensors and figure out the root cause of the Check Engine Light (CEL) and help you turn it off in the most efficient way.

��【Quick DTC Definition Lookup】

Vident iEasy310Pro offers the auto diagnostic scanner with DTC Lookup and DTC Breaker features showing you the definitions and descriptions of the DTCs in no time! No more guesswork or frowning upon the contradictory opinions on the internet!

��【Patented One-Click Smog Check & User-Friendly Design】

Vident iEasy310Pro engine analyzer features patented I/M One-Click Readiness Key for quick State Emissions readiness check(smog check) and drive cycle verification. Coming with a TFT color display to show DTC definitions more clearly, a built-in speaker provides an audible indication, an LED Indicator, and a long cable, is super easy to use even if you are new to a car repair.。

��【Lifetime Software Update & Multi-Lingual Menu】

Vident iEasy310Pro car diagnostic reader comes with lifetime Free software updates via internet and multilingual menu options like English, French, German, Russian, Spanish, Italian, Portuguese, Hungarian, Swedish, Slovak, Czech.

Please note: Update support is limited to a windows based device, NOT SUPPORT MAC or iOS.

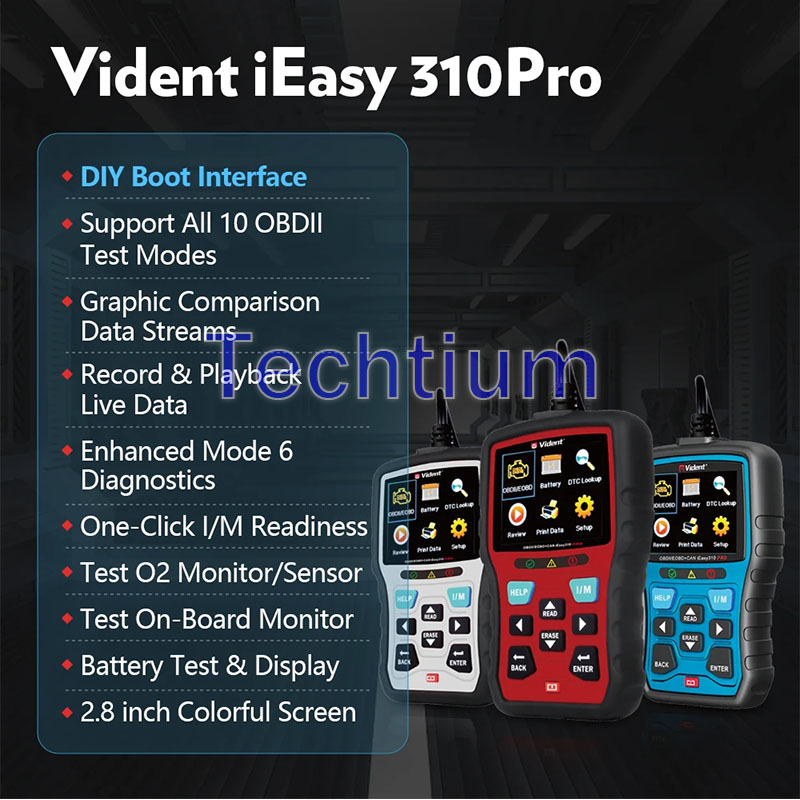

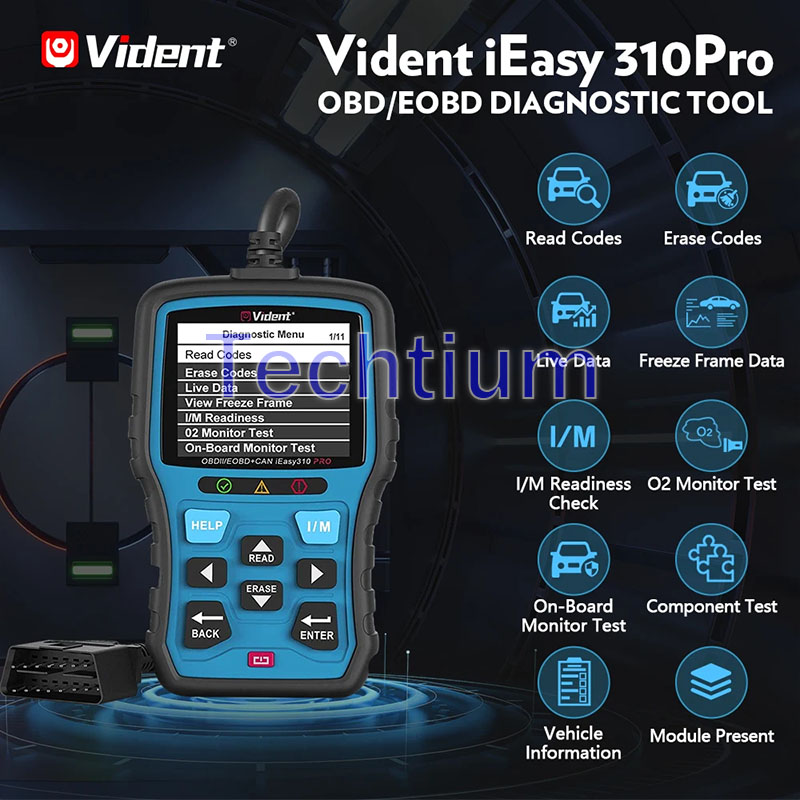

Complete 10 Modes of OBDII/EOBD Tests

✔️Read Codes
VD30 engine fault code reader can access the powertrain module to pull generic codes(P0, P2, P3, and U0), manufacturer specific codes((P1, P3, and U1) and pending codes to pinpoint the fault locations that lights up the check engine light. Reading codes can be done with key on engine off or with key on engine running depending on the specific vehicle it's testing.
✔️Erase Codes
Erase the DTCs when proper fix needed has been done and the fault is not longer present. Erasing the fault codes may allow the auto scanner to delete not only the codes from the vehicle's on-board computer, but also “Freeze Frame” data and manufacturer specific enhanced data.
>>>Note: Clearing codes should be performed with key on engine off (KOEO).
✔️Live Data
Live Data functions allows you to view the live PID(parameter identification data) data of vehicle's computer module(s) in text, graph to check the status of various sensors. It also enables you to record manually or automatically 5 frames of live data before and several frames after a trigger event like when a DTC is set and for later data playback and review.
✔️Freeze Frame Data
Freeze Frame Data allows you to view the vehicle's operating parameters at the moment a DTC is detected The parameters may include engine speed (RPM), engine coolant temperature (ECT), or vehicle speed sensor (VSS) etc. These information will aid the technician by allowing the parameters to be duplicated for diagnostic and repair purposes.

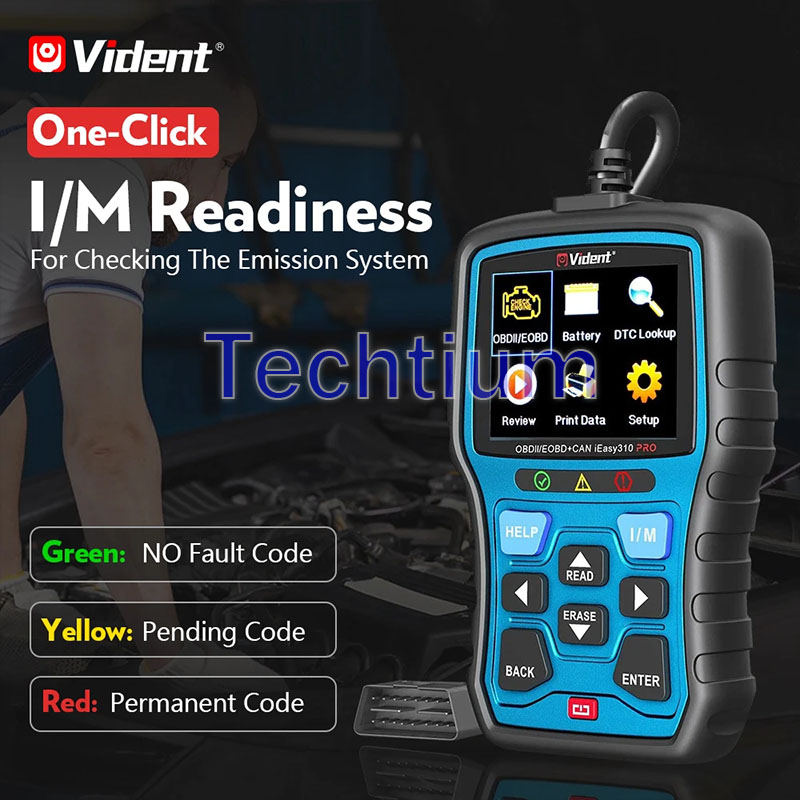

✔️I/M Readiness Check(Smog Check)
VD30 car diagnostic scanner features patented One-Click I/M readiness Status Key to check the operations of the Emission System and to make sure your vehicle is ready for the annual State Emissions Readiness Check(Smog Check).
✔️O2 Monitor Test
The O2 Monitor Test function allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle's on-board computer. These tests are not
on-demand tests and they are done automatically with test results saved in the on-board computer's memory.
>>>Note: The O2 Monitor Test function is not supported by vehicles which communicate using a controller area network (CAN).
✔️On-Board Monitor Test
The On-Board Monitor Test for non-CAN-equipped vehicles retrieves and displays test results for emission-related power train components and systems that are not continuously monitored.
✔️Component Test
The Component Test function allows initiating a leak test(EVAP Leak Test) for the vehicle's EVAP system.
✔️Vehicle Information
The Vehicle Info. function enables retrieval of Vehicle Identification No. (VIN), Calibration ID Nos. (CINs), Calibration Verification Nos. (CVNs) and In-use Performance Tracking on 2000 and newer vehicles.
✔️Module Present
The Modules Present function allows viewing of the module IDs and communication protocols for OBD2 modules in the vehicle.

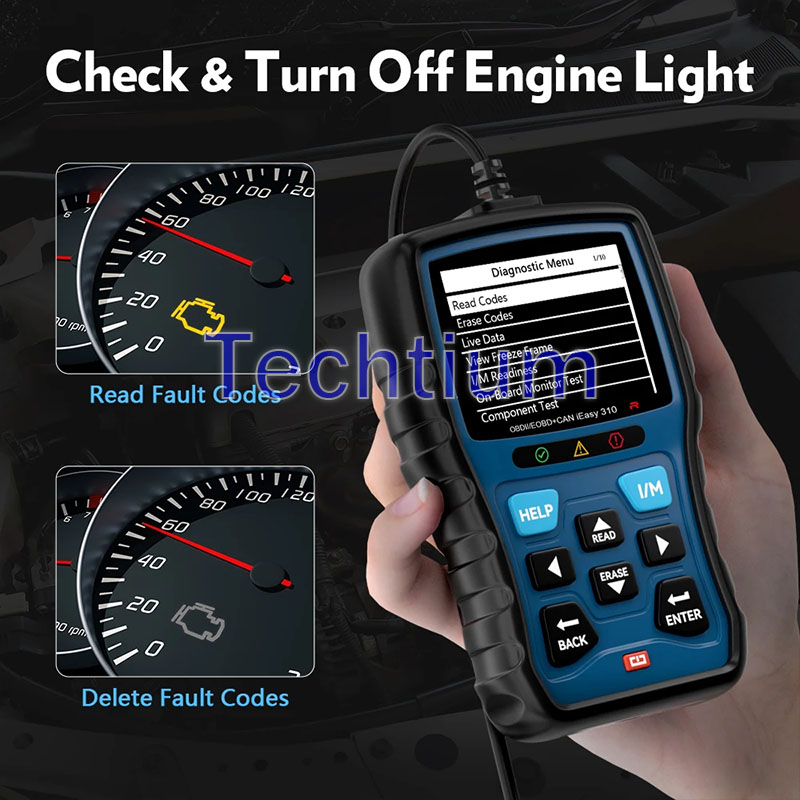

Turn Off Check Engine Light(MIL)

Vident iEasy310Pro OBDII Code Reader is an enhanced car engine scanner that enables technicians, used car dealers, weekend mechanics or DIYers to check engine related fault codes, understand the definitions of the DTCs with the DTC Lookup & DTC Breaker feature, view live sensors data stream and perform various monitor tests to figure out why the check engine light(MIL) is on and be able to fix the car problems and turn off the check engine light(MIL).

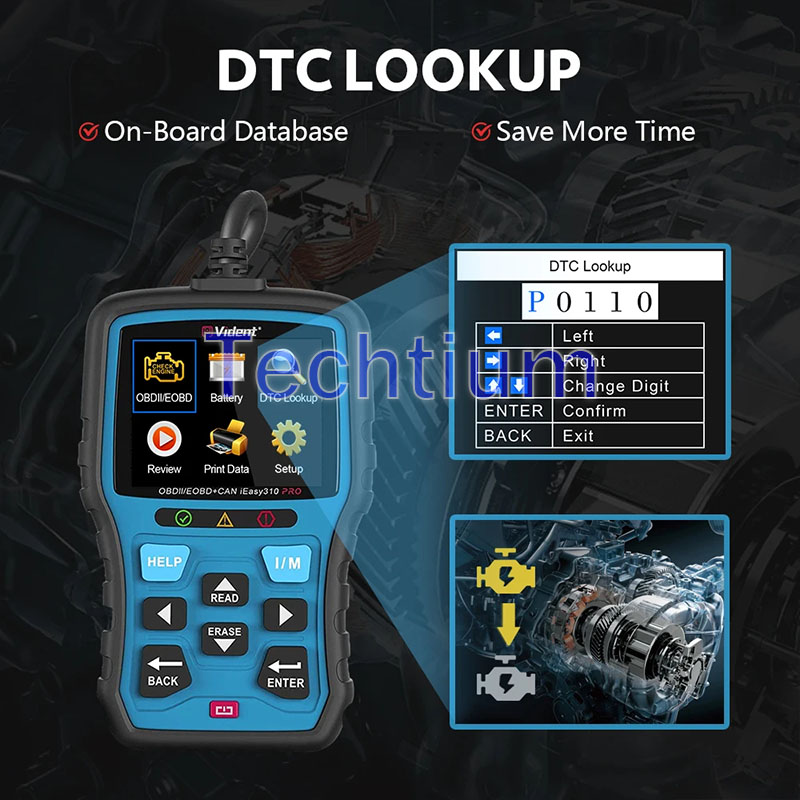

DTC Lookup & Code Breaker for Accurate & Efficient Diagnosis

Vident iEasy310Pro OBD2 scan tool offers DTC Lookup & Code Breaker features to provide descriptions of DTCs and helpful tips to deal with DTCs. It is useful for technicians to find the root cause of trouble code faster, saving diagnosis and repair time. No more guesswork or googling only find yourself being confused by the contradictory search results.

One-Key Quick Check for O2 Sensor Test & I/M Readiness

Vident iEasy310Pro vehicle code reader helps Smog Check Allows retrieval and viewing of O2 sensor monitor test result for the most recently performed test from the vehicle’s on-board computer.Less oil and more performance for your vehicle!

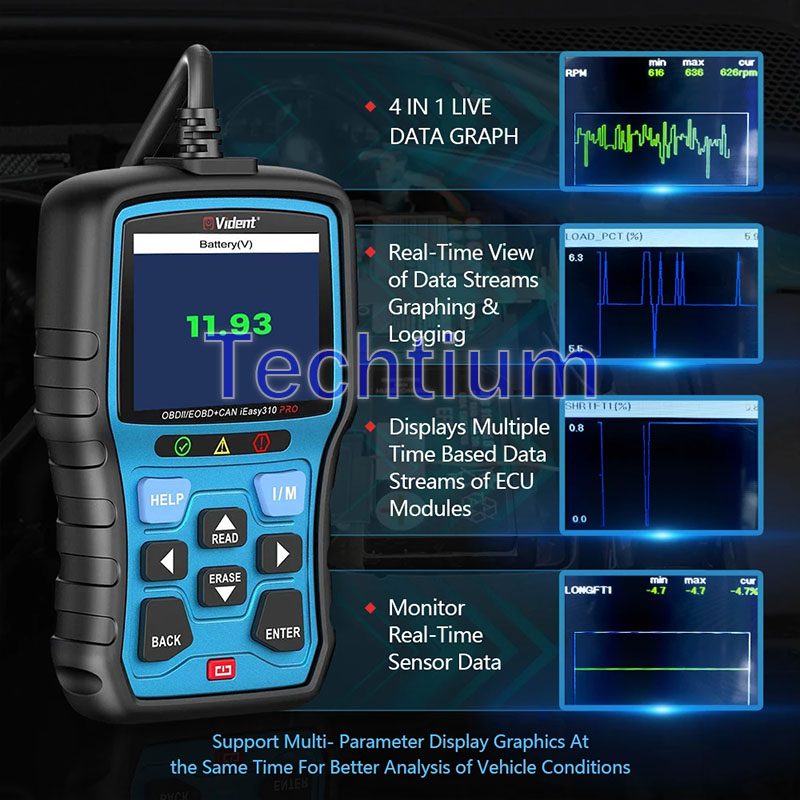

Live Data Viewing, Graphing, Recording, Playback & Printing

Vident iEasy310Pro car engine scan tool offers technicians and DIYers complete options for auto diagnostic data processing, including viewing live data stream of multiple sensors in text or graph, record the data for later review and print it out via PC to share it with customers or mechanics.

Unmatched OBDII Compatibility

This universal code reader supports all OBD2 protocols: KWP2000, ISO2000, ISO9141, J1850 VPW, J1850 PWM and CAN and can work on almost all OBD2/EOBD/CAN Vehicles:
✔️American Car : Need Standard OBD2 Protocols from 1996 to now;
✔️European Car : Need Standard OBD2 Protocols from 1996 to now;
✔️Asian Car: Need Standard OBD2 Protocols from 2005 to now;
✔️Australia Car: Need Standard OBD2 Protocols from 2004 to now.

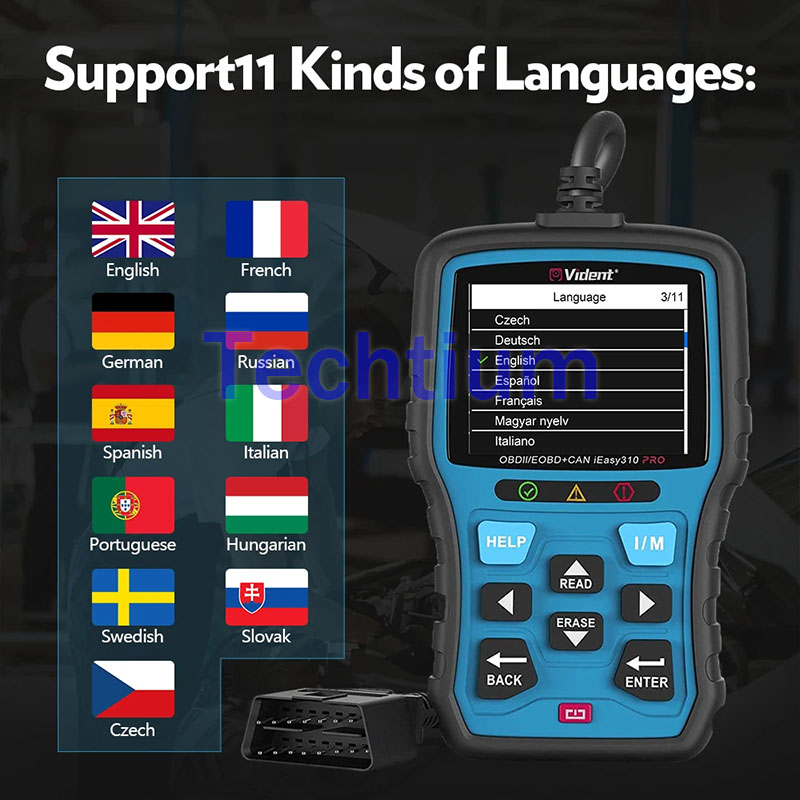

Vident iEasy310 Pro Support11 Kinds of Languages:  English, French, German, Russian, Spanish, Italian, Portuguese, Hungarian, Swedish, Slovak, Czech

Note: There is no Polish and Netherland language. When you receive, get others languages by update tool.

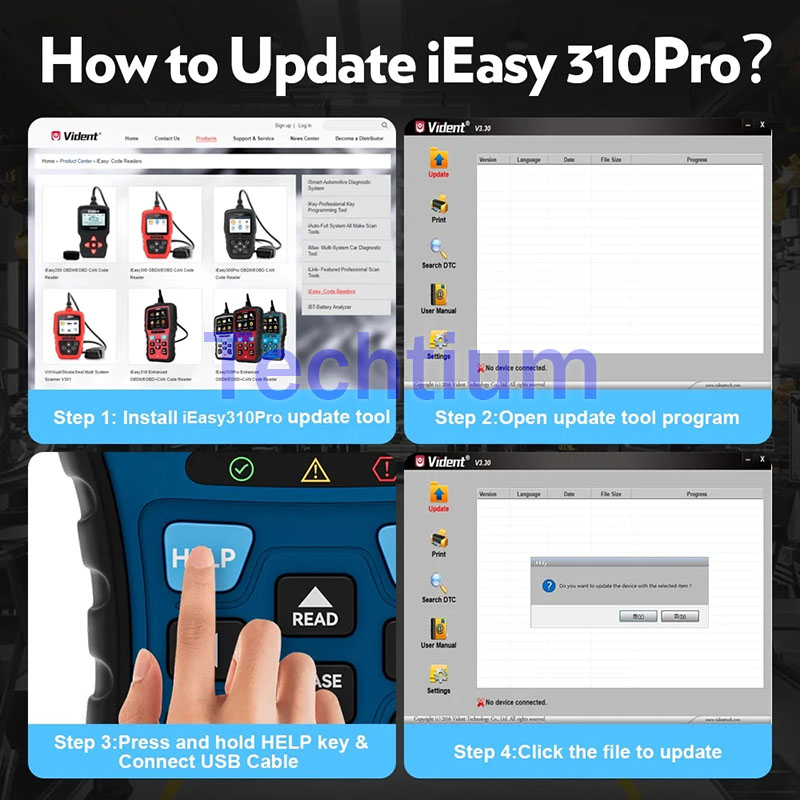

How to Update Vident iEasy310 Pro？

1. Download the update tool iEasy310 Pro and update files from Vident Official Website: http://www.videnttech.com  and save the applications and files in computer disk.

3. Double click the iEasy310 Pro desk Top icon to launch the application.

4. Click Setting and select the language you want to update.

5. Press and hold HELP key. Do not release the HELP key, then connect the USB cable.

6. When the tool enters the Update Mode, the application would detect the tool automatically.

7. Check the files you want to update. Click “Print” Option, Print DTC Data.

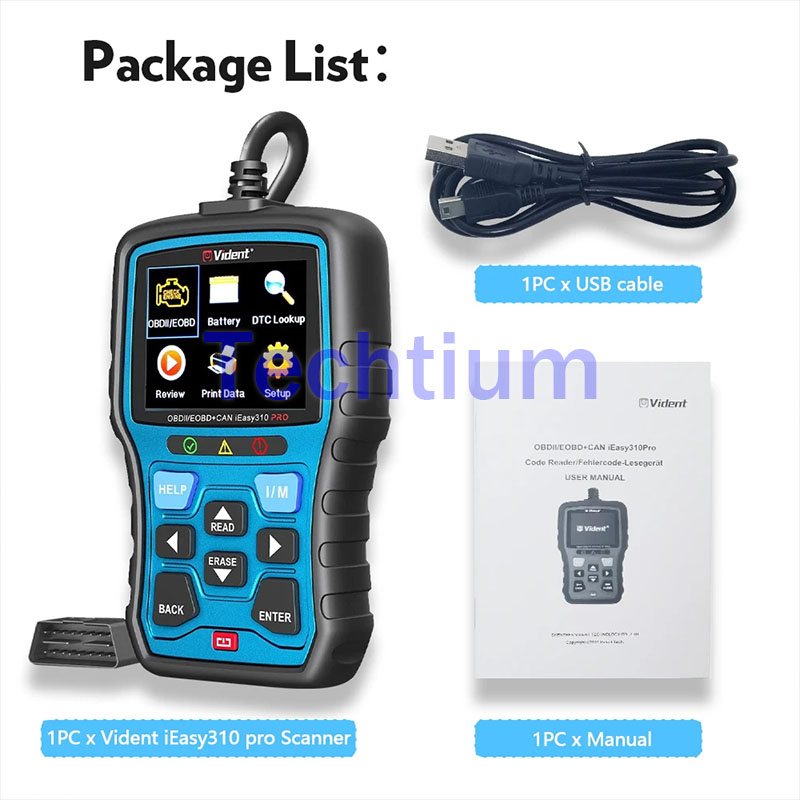

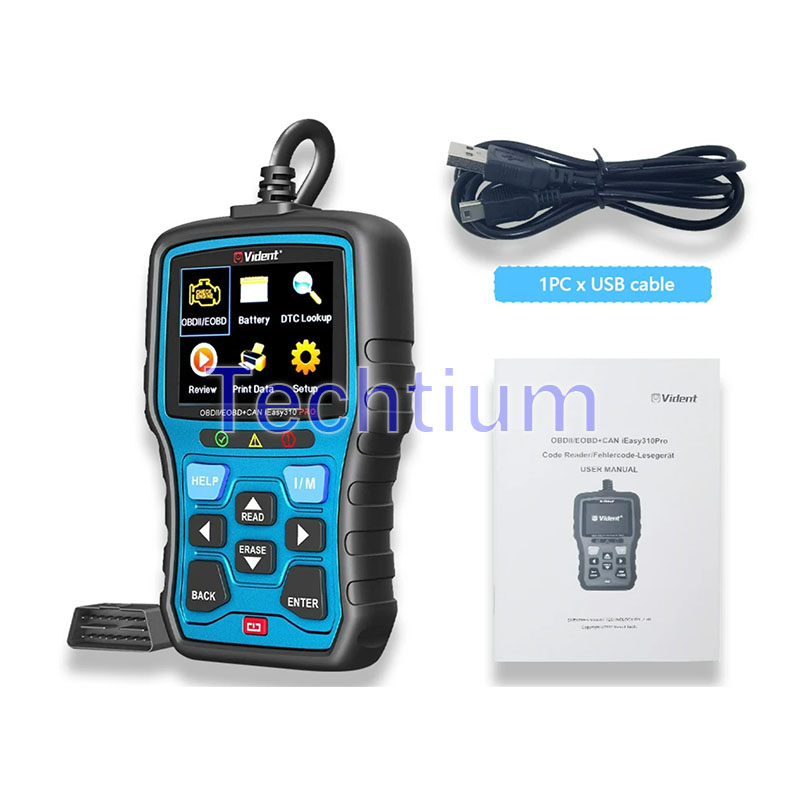

Package List：

1PC x Vident iEasy310 pro Scanner

1PC x USB cable

1PC x Manual
