    Details:








    #33_Module 33 MQB-33 with License A608

    Supports VW the 4th/4.5th generation and MQB 5A etc.IMMO and mileage correction.
    Add keys and All key lost for Volkswagen MQB48 (AKL need to get Synchronous data from third party)

    Module 33 Support the following chip module instrument cluster
    3524, 3525, 3526, 3529, 3532, 3533, 3536, 3537, and 8pin chip 95320

    #34_Module 34 MQB-34 with License A609

    Support VW RH850 series R7F7xx0x chip model instruments (5A) IMMO and mileage correction (5A/5C)

    1. Support IMMO and mileage correction for the 4th generation instrument with D70F3423 +95320 chip model.
    2. Supports IMMO and mileage correction for D70F3426 +95128 chip model MQB 5A instrument.
    3. Supports IMMO and mileage correction for RH850 series R7F701401, R7F701402, R7F701407 chip model 5A instruments.
    4. Support mileage correction for RH850 series R7F701401, R7F701402, R7F701404, R7F701406, R7F701407 chip model 5C instrument.

    Module 33 & Module 34 Features:

    Precise pin positioning
    Stable connection
    Easy to set up

    No welding
    No warped feet
    No cutting wire
    data read & write is safer

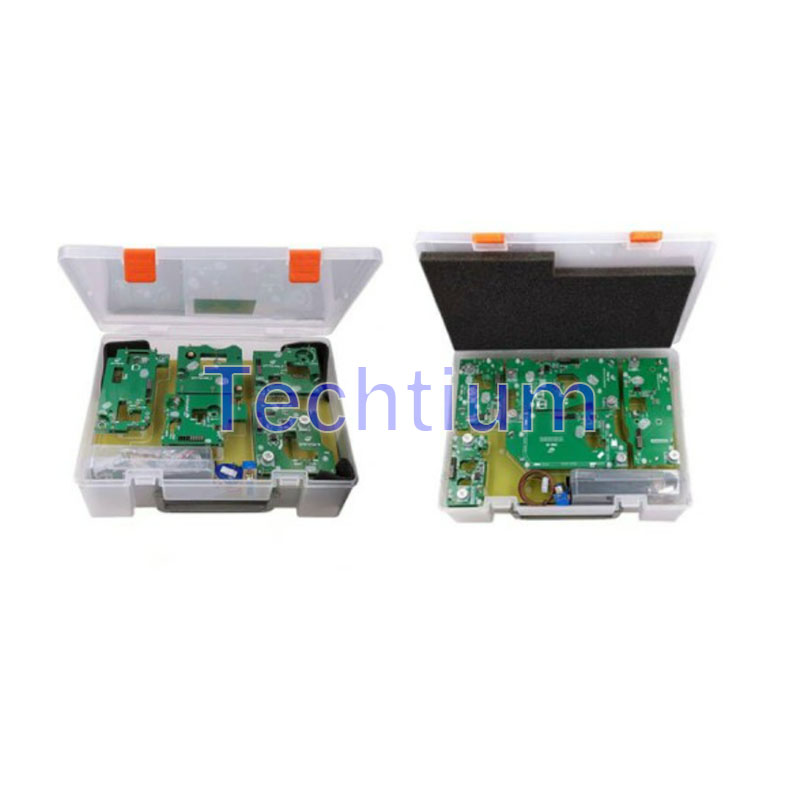

    Package List:

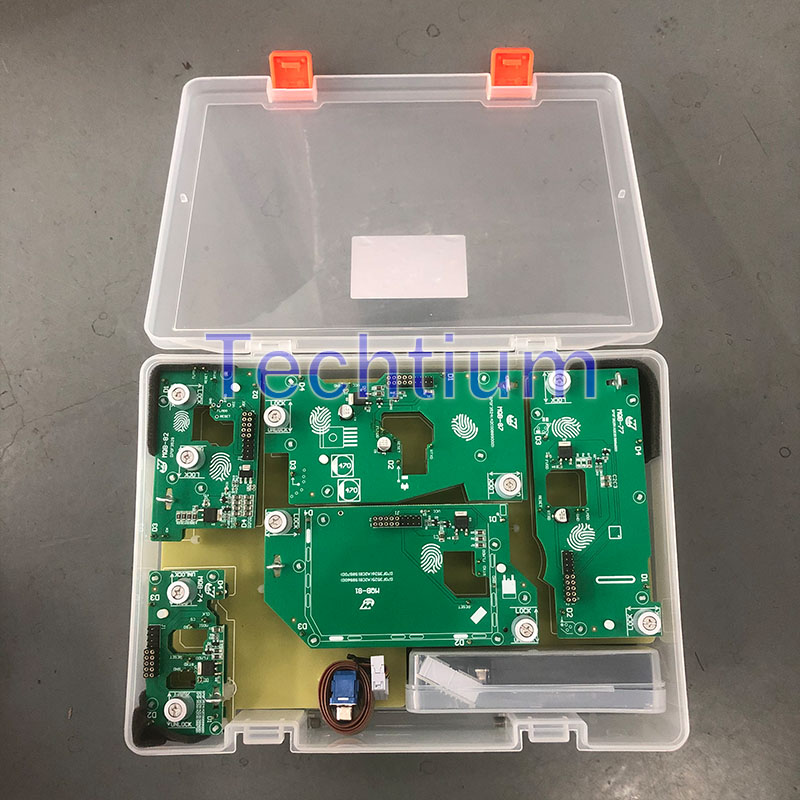

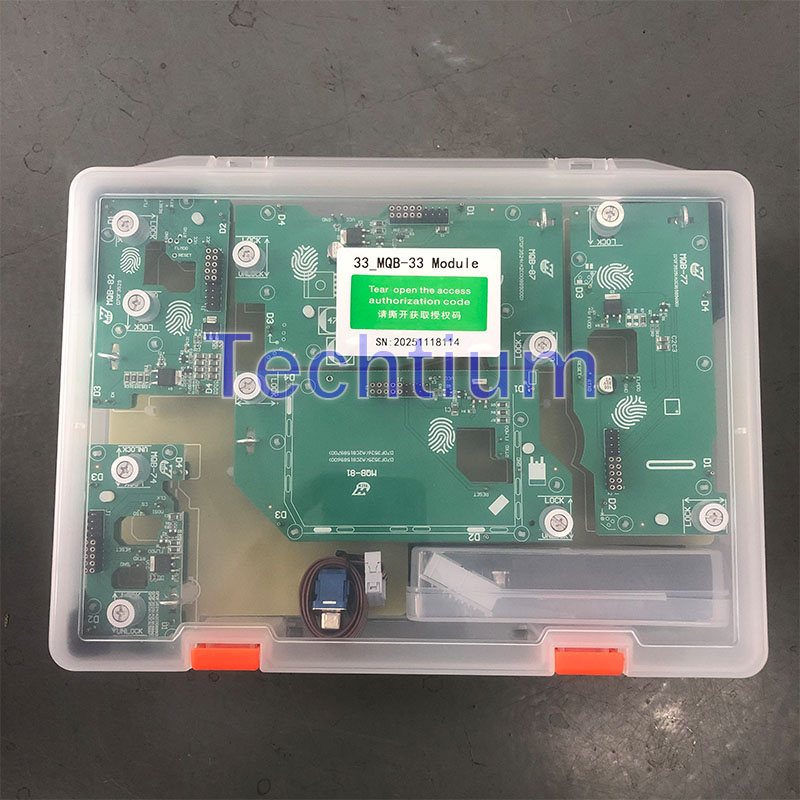

    1set x Module 33

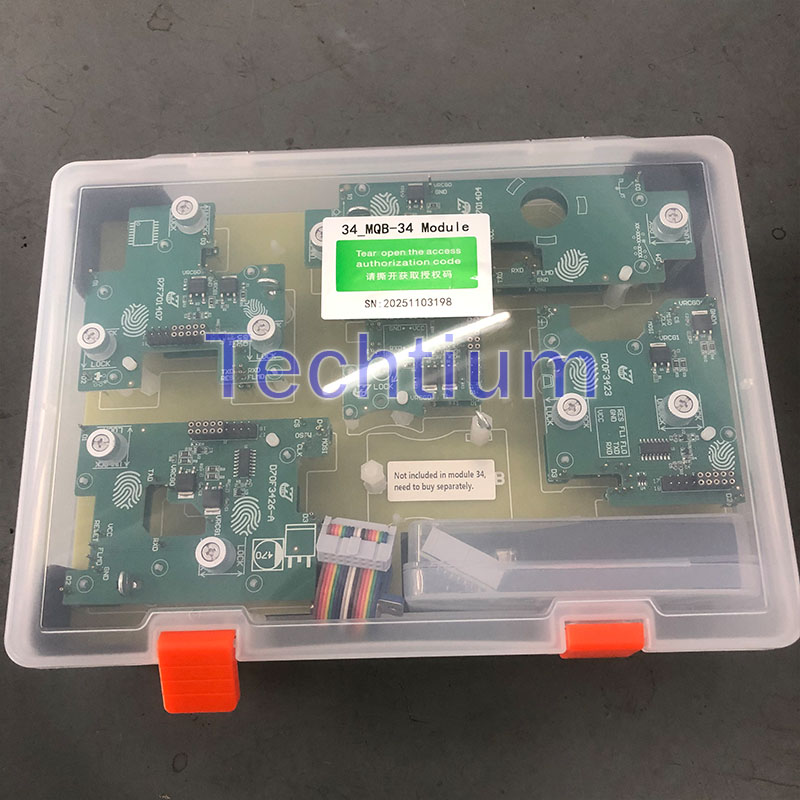

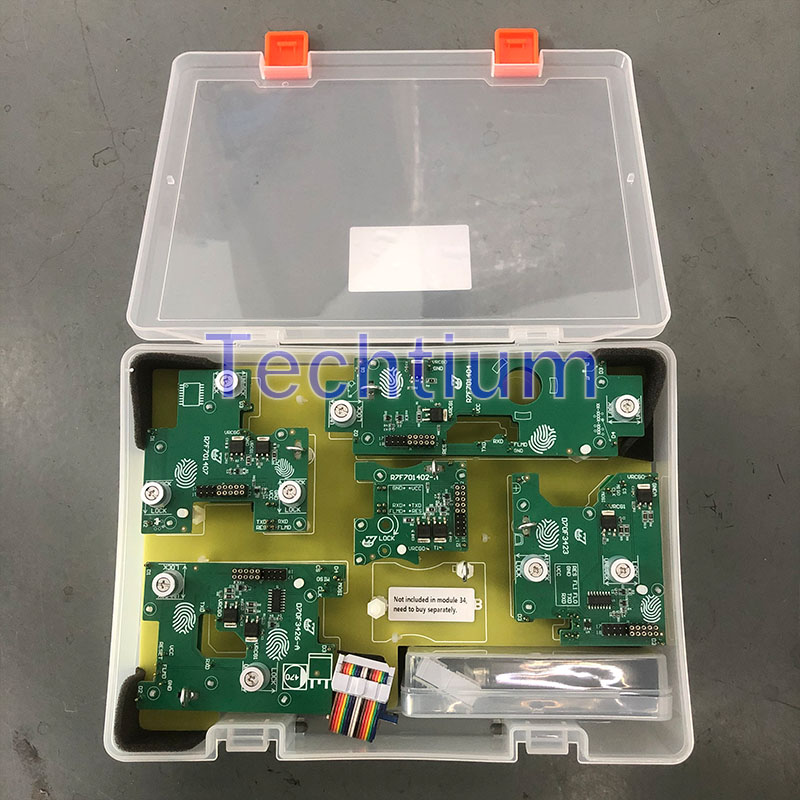

    1set x Module 34


    FAQ:

    Q: Can they clone original cluster of golf 7 MQB to fit another donor used cluster?
    A: Besides 5C, others are supported




    Q: How to use it to clone the dashboard?

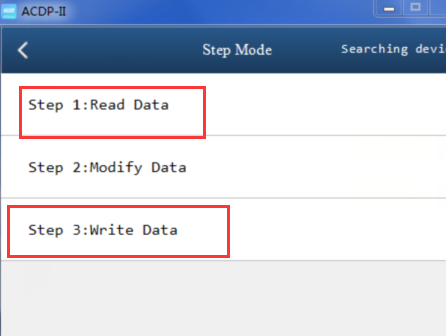

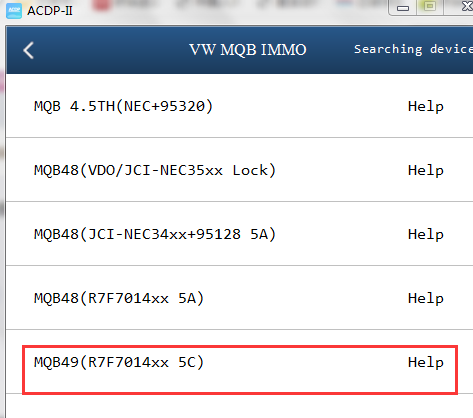

    A:  Choose these two meun to do








    Package List:

    1pc x MQB-74 Interface board

    1pc x MQB-75 Interface board

    1pc x MQB-77 Interface board

    1pc x MQB-78 Interface board

    1pc x MQB-79 Interface board

    1pc x MQB-80 Interface board

    1pc x MQB-81 Interface board

    1pc x MQB-82 Interface board

    1pc x MQB-83 Interface board

    1pc x MQB-84 Interface board

    1pc x MQB-85 Interface board

    1pc x MQB-86 Interface board

    1pc x MQB-87 Interface board



    1pc x R7F701401 Interface board

    1pc x R7F701402 Interface board

    1pc x R7F701404 Interface board

    1pc x R7F701406-1 Interface board

    1pc x R7F701406-2 Interface board

    1pc x R7F701407 Interface board

    1pc x D703423 Interface board

    1pc x D703426-A Interface board

    1pc x D703426-B Interface board

    1pc x D703426-C Interface board

    1pc x PCF-KEY adapter

    1pc x MQB V2 adapter

    1pc x 20 PIN cable

    8pcs x screws
