Digital counter suitable for the remote control and the match of anti-theft annunciator, decoding, debugging and check. (Including Auto theftproof implement, wireless theftproof implement, garage door remote control, and electric control door remote control.

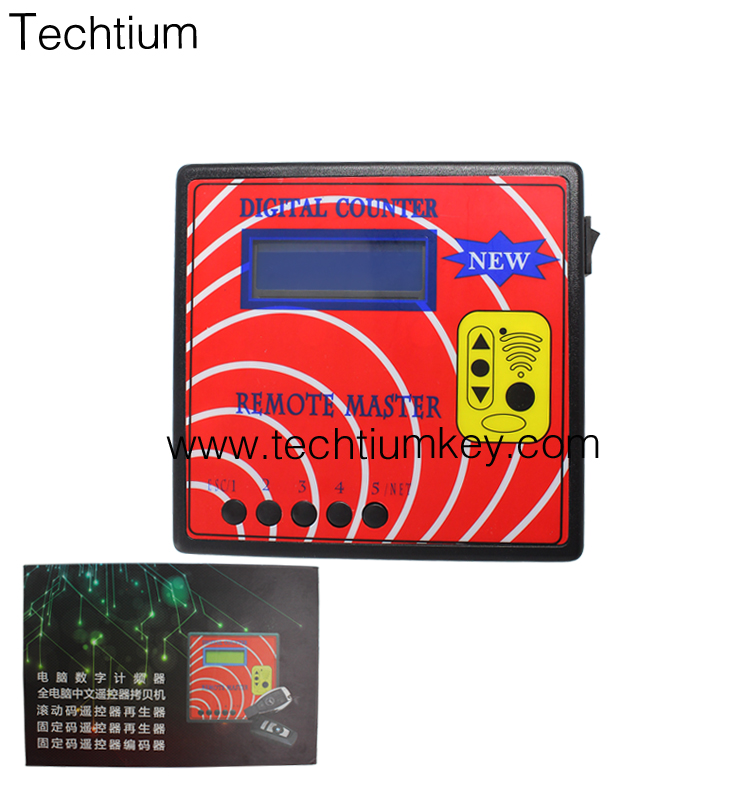

DIGITAL COUNTER (REMOTE MASTER)

Function:

1.Function includes Chinese-English transition menu, frequency display, remote control copy, remote control regenerate, line inter-transfer and upgrade and so on. It is suitable for the remote control and the match of anti-theft annunciator, decoding, debugging and check. (Including Auto theftproof implement, wireless theftproof implement, garage door remote control, and electric control door remote control.

2.This copy machine can be used to copy each factory brand's remote control swiftly; including fix code, computer code, and part of roll code. Its function has remote control regenerate and frequency check and so on. Equip three remote control (Including size A, B, C). It is easy to operate according to the introduction in using manual.

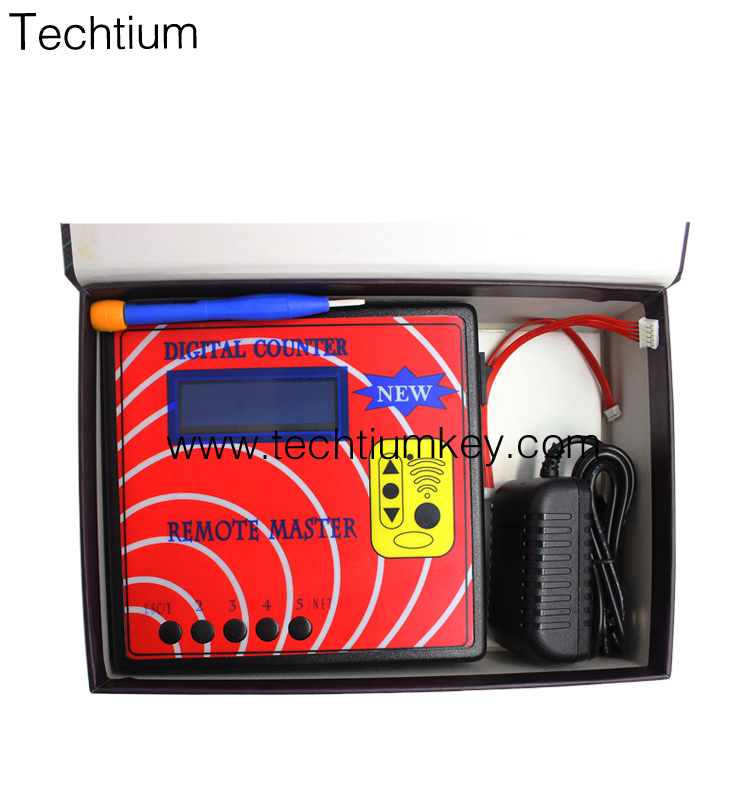

Package list:

1pc x Digital Counter

2pc x Red Wires

1pc x Screw Stick

1pc x AC Adapter

Functions:

1. Frequency indicate (25MHz-1GMHz)

2. Data Detect

3. Duplicate /learn Fixed code remote

4. Duplicate /learn part of Rolling code remote

5. Duplicate /learn part of original car keys

6. Compare data (frequency, data, etc.) between remotes after copy

7. Regenerate new remote control

8. Chinese/English bilingual support

Remote Master User Manual:

The remote master used to copy RC, working with remote control A, B, C three styles submachines.

The use method as belows:

1, Four copy styles as below

Turn on the power, press key5 2 times, interface shows "remot copy";

1) press key5 one time, shows "1.normal copy";

2) then press key3 one time, shows "2.Singkey copy";

3) continue to press key3 one time, shows"3.MulFreq copy";

4) repeat last step, shows"4.same SYS copy";

2, "Normal Copy"

When the interface shows "1.normal copy", then action as below

1) press key5 one time, shows "input 1key to", then press the original remote 1key one time, the machine sounds "bee" a time, enter into code reading; then press key5 one time, shows "input 2key to", continue last step. Action as this to read all keys one by one;

2) When finished original remote code reading, press key5 two times, shows "input No.1 remote", means insert RC (remote control) A, press key5 one time, then write the code infomation into new remote;

3) adjust frequency: back to interface "remot copy", press key4 one time to test frequency: put the original remote on the machine and press any key one time, shows the frequency. Then put the RC A on the machine, press key1 one time, use the non-inductive regulator action on the white capacitance to adjust frequency fit.

4) after adjust frequency, press key1 & key 2 at the same time (if the remote has 5keys, just need press key5 one time), the light flash one time. When you press any key there is the light, means copy successfully finished.

3, Other copy method, please action as the indication in the machine.
